Product information "Surge arrester 1000V type 2 Phoenix"

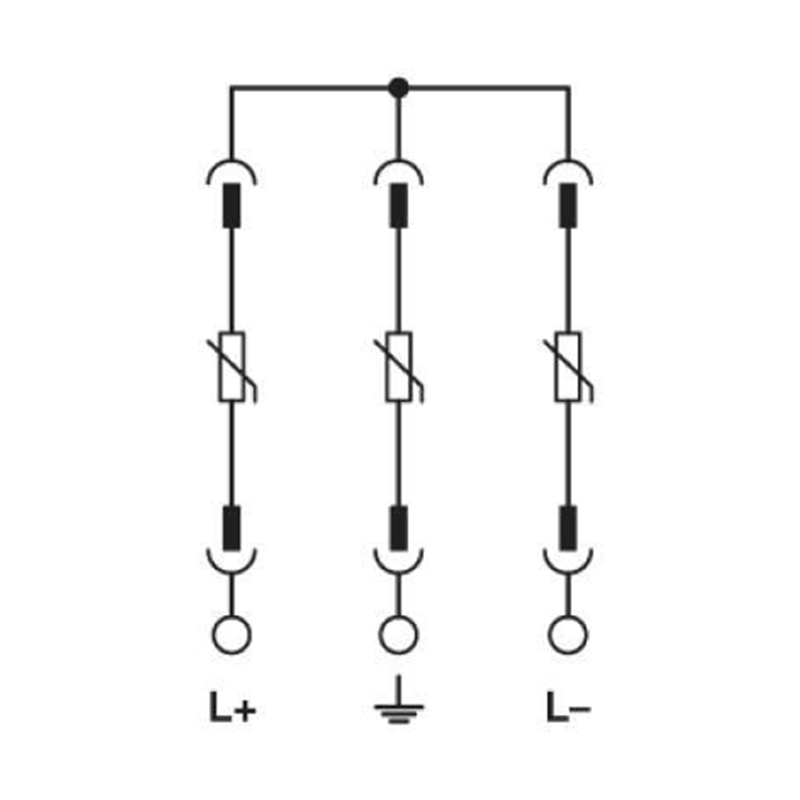

Surge arrester for 2-pole insulated and earthed systems of 1000 V DC, for mounting on a support rail, 3-pole base, three plug-in protection components with thermal control, status indicator on each plug.
Distinguishing features of the product:
- Increased safety through the use of EN 50539-11
- Safe contact thanks to integrated swivel bolt
- Easy replacement thanks to plug-in stops
- Optimal protection of the charger due to low protection level
- Intentional replacement of damaged plugs thanks to the optical status indicator
- Protection against accidental plugging in by coded plugs and bases
DC protection: | DC Surge arrester |
---|---|
Width - number of modules: | 3 |
Max. voltage [V]: | 1170 |

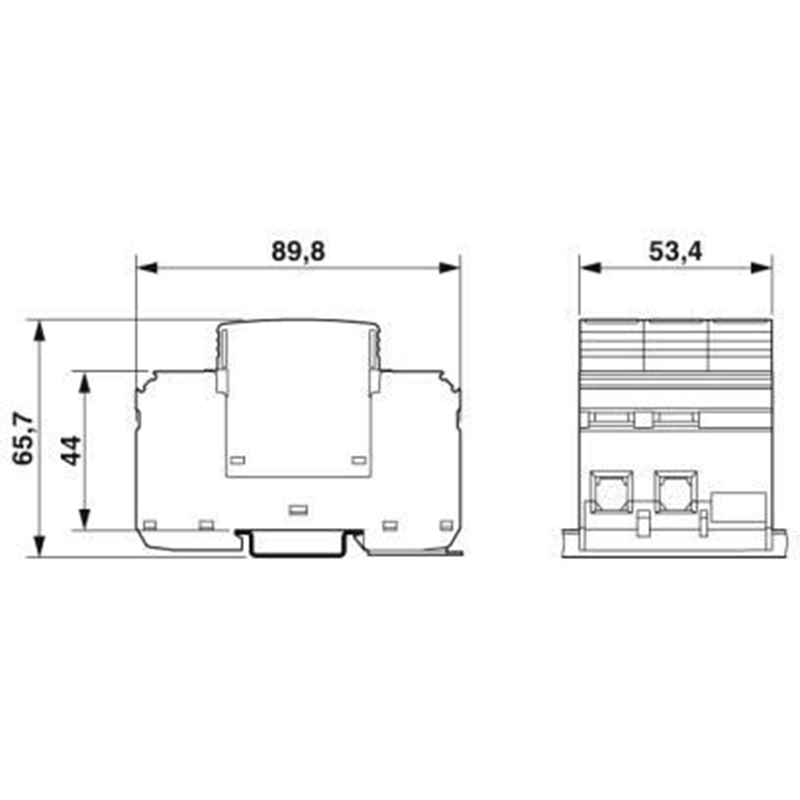

Dimensions [mm]: | 89.8 x 53.4 x 65.7 |
