PV Mounting elements
Stainless-steel handle type S
Manufacturer: iONTEC
INDEX: UCHW.S
Product information "Stainless-steel handle type S"

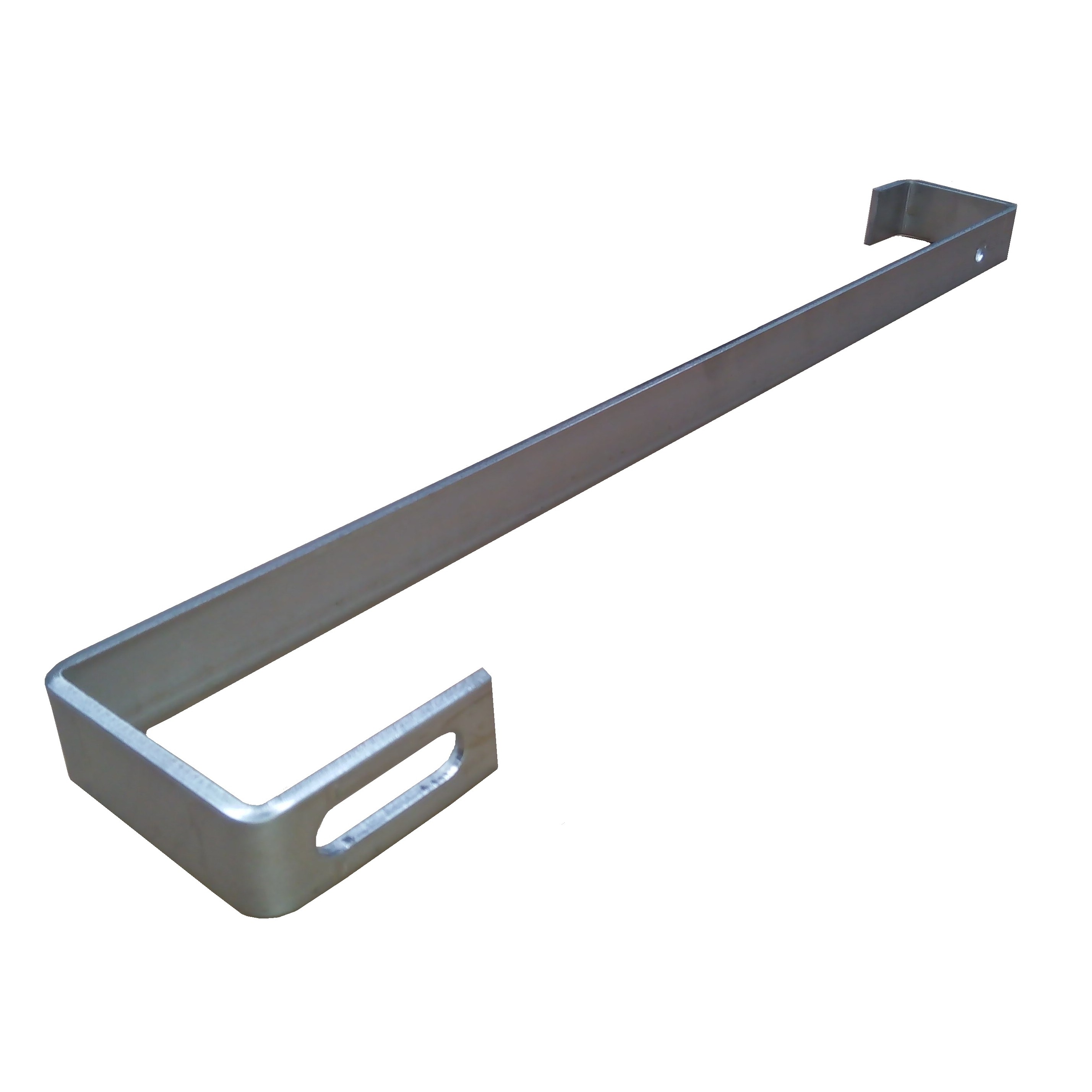

The S-type under-tile handle is made of stainless steel and has a hole for an M10 bolt.

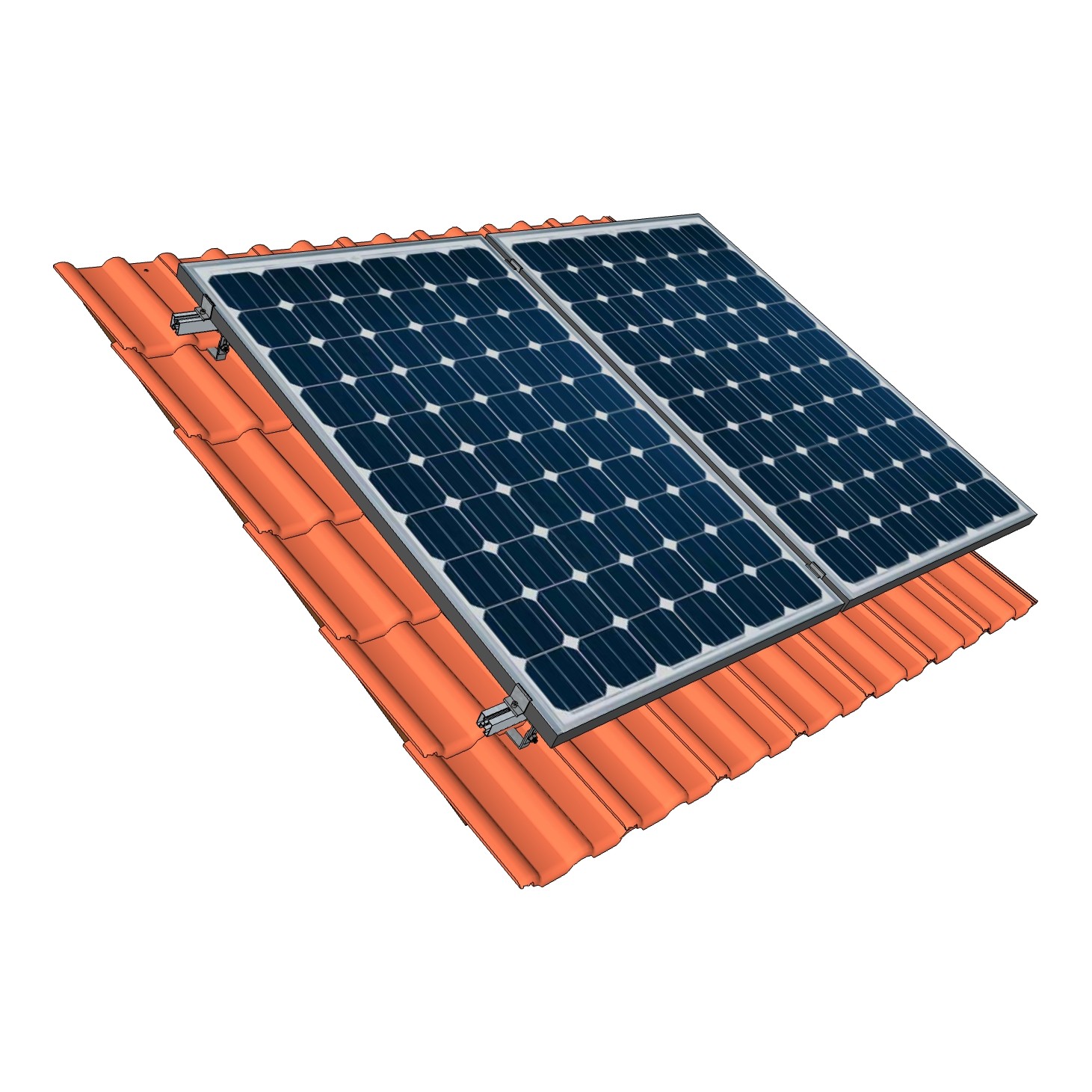

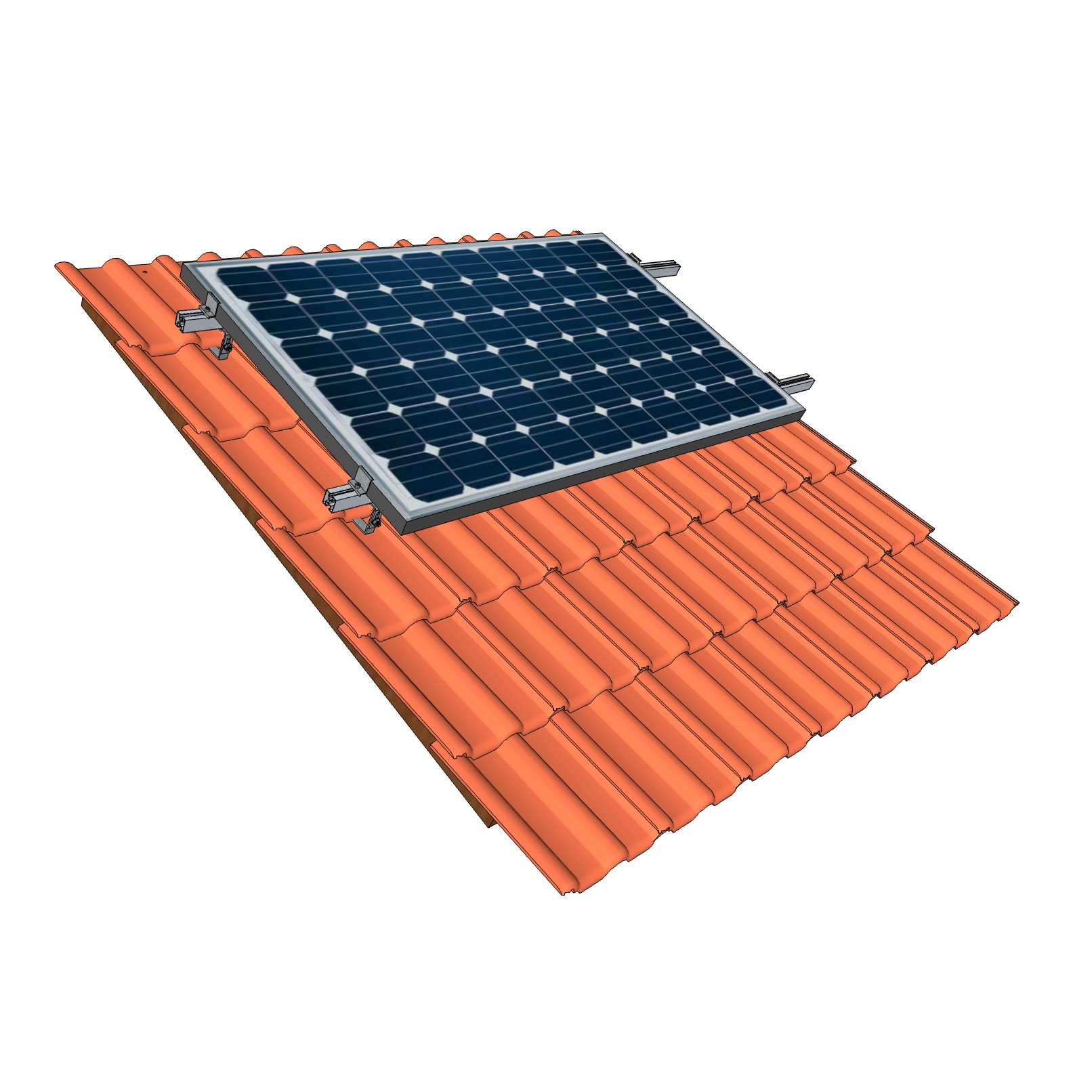

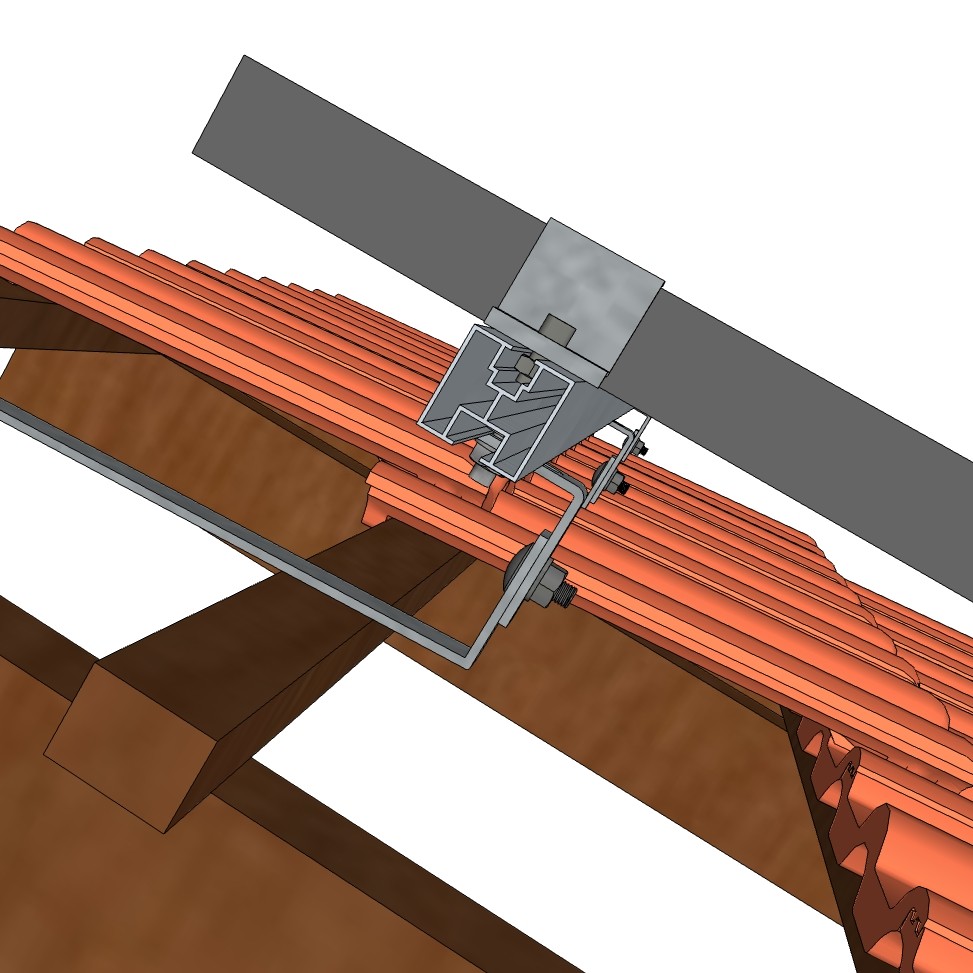

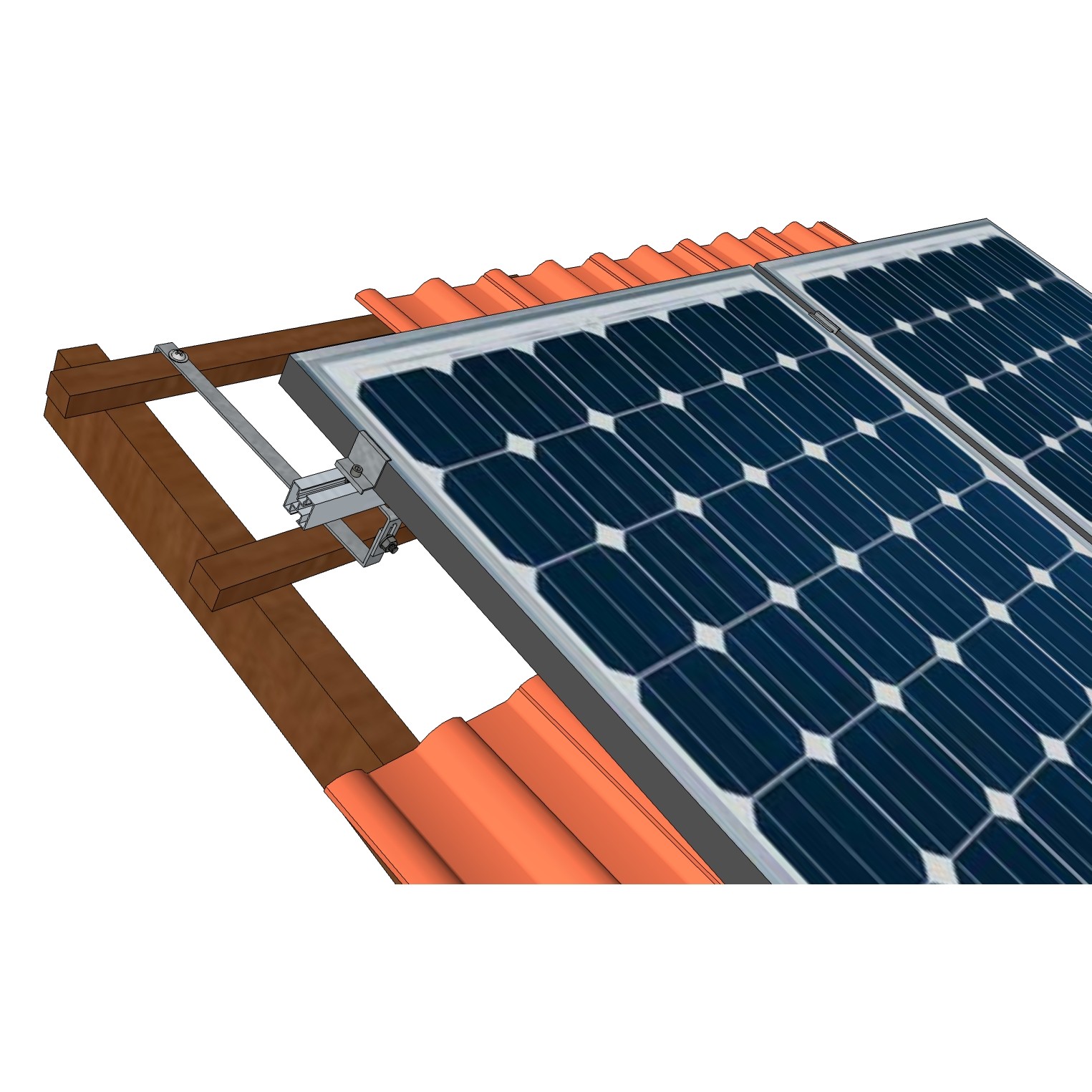

It is used for fixing aluminium mounting profiles of photovoltaic panels and solar collector installations on pitched roofs covered with ceramic and concrete tiles.
Material: stainless steel

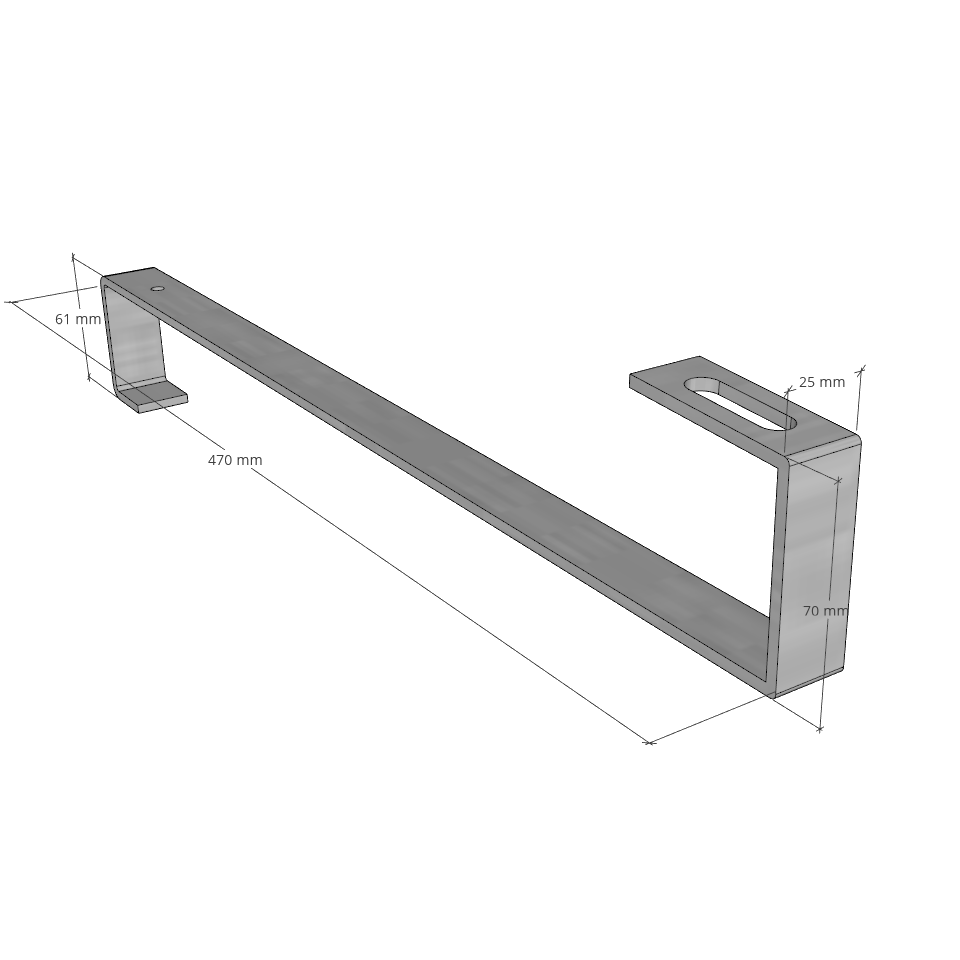

Height: 68 mm
Hypotenuse: 25 mm
Length: 470 mm
General features:
| Construction type: | Ceramic tile handle S |
|---|---|
| Elements: | Hooks |
| Weight [kg]: | 0.49 |
| Dimensions [mm]: | 130 x 470 x 25 |
