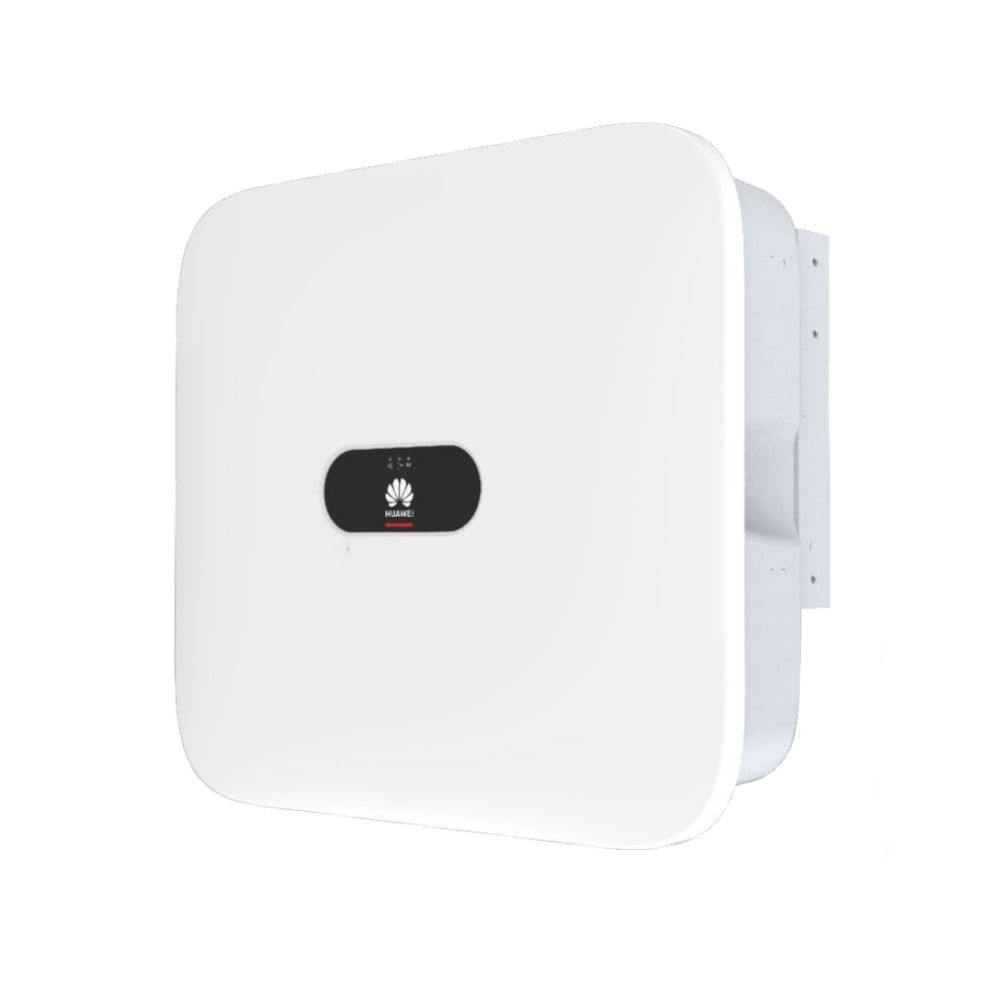

Solar inverter SUN2000-17KTL-M2 high current Huawei

Huawei SUN2000 series inverters are solar inverters designed to maximize the energy efficiency of PV systems installed on both roofs and on the ground.

The high-current version, is characterised by a permissible higher input current on the DC side.

Technically, the inverters work with a three-phase grid, which is an optimal solution for both the power grid and for direct consumers of electricity in households. The AI-based technology actively protects against electric arc and precisely indicates where it occurs. The inverter provides a maximum efficiency of up to 98.65%. It works with energy storage systems.

Distinguishing features:

• Maximum efficiency 98.65%
• Input voltage range 160 to 950 V
• Built-in leakage current monitoring system
• Smart detection of electric arcs reduces the risk of fire
• Designed to work with energy storage systems
• Ambient temperature range: -25°C to +60°C
• LED status indication
• Passive cooling

Operation and installation:

• Easy assembly and disassembly with mounting brackets
• DC reverse polarity protection
• Built-in AC and DC-side surge protection type II
• Built-in overcurrent and short-circuit protection on AC side
• Batteries can be connected directly
• Communication via RS 485, LAN, and GSM 4G via Smart Dongle-4G
• IP65 rating
• Dimensions 525 x 470 x 262 mm

Use:

• Touch-free inverter operation
• Application for configuration and monitoring
• LED indicator on the housing
• Quiet operation
• Remote technical support
• 10-year warranty
