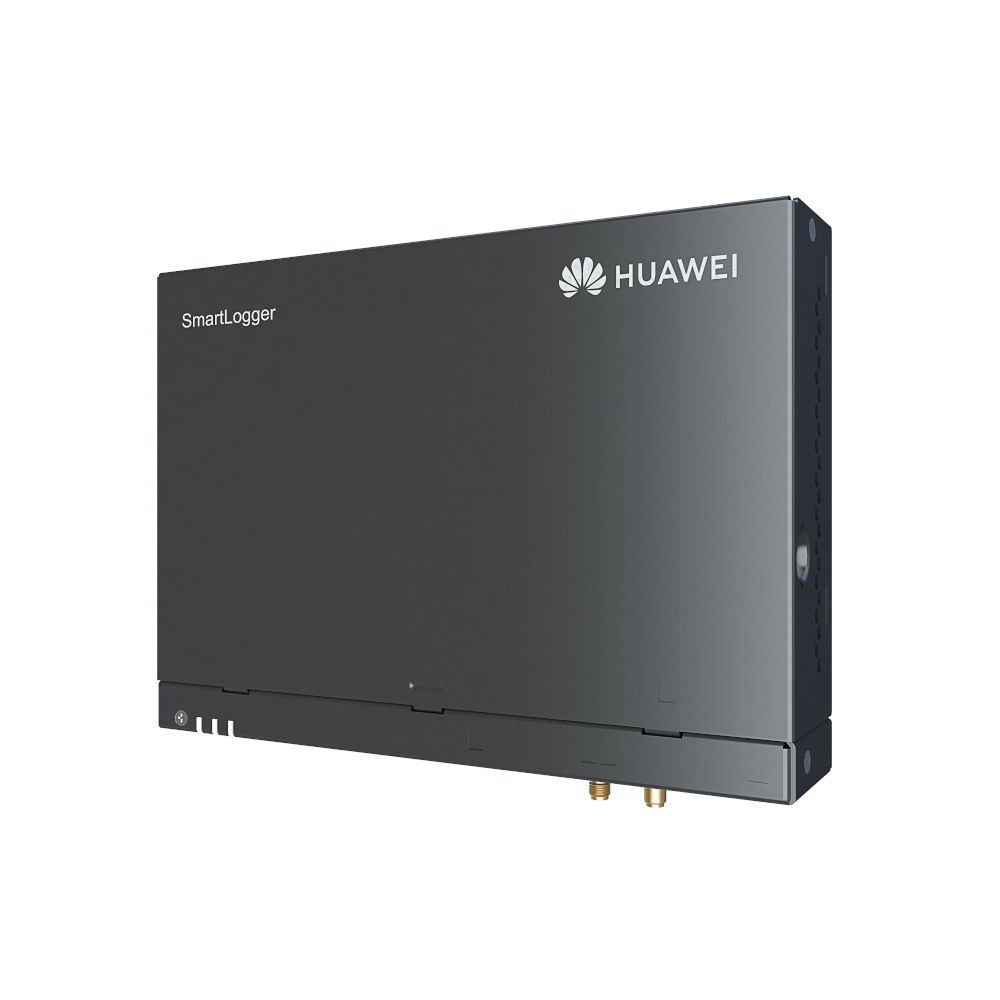

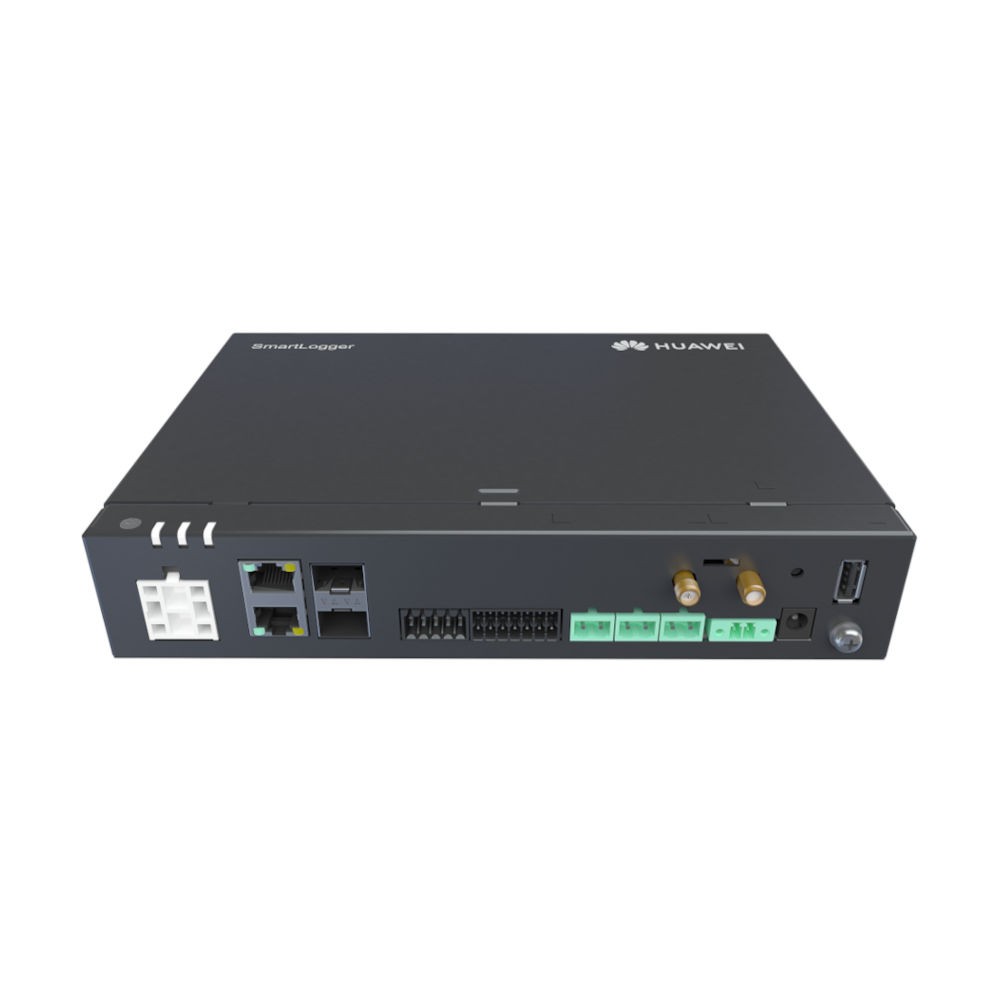

SmartLogger 3000A Huawei monitoring module
Sold out
No longer available
Product number:
SMART LOGGER-3000A
Product information "SmartLogger 3000A Huawei monitoring module"
The SmartLogger 3000A monitors and manages PV power systems. It converges all ports, converts protocols, collects and stores data, and centrally monitors and maintains the devices in PV power systems.
The SmartLogger applies to PV power systems. It supports the following:
- Local operations on the SmartLogger using the mobile phone app through the built-in WLAN
- RS485 networking, which enables the SmartLogger to connect to:
– Huawei devices such as solar inverters and PID modules
– Third-party solar inverters, environment monitoring instruments (EMIs), transformer stations, and power meters that use the Modbus-RTU protocol
– Power meters that use the DL/T645 protocol
– Devices that use the IEC103 protocol
- MBUS networking, which enables the SmartLogger to connect to Huawei solar inverters and PID-PVBOXs that support MBUS communication
- Connection to management systems:
– Connects to a management system that uses the Modbus TCP protocol over a wired or wireless network.
– Connects to a management system that uses the IEC104 protocol in the LAN over a wired network.
NOTE
The SmartLogger cannot be connected to a management system that uses the IEC104 protocol over a 4G/3G/2G or LTE dedicated network.
| Category: | Monitoring / communication |
|---|---|
| Type: | Monitoring |
| Dimensions [mm]: | 225 x 160 x 44 |
| Weight [kg]: | 2 |
| Product Warranty: | 2 years |
