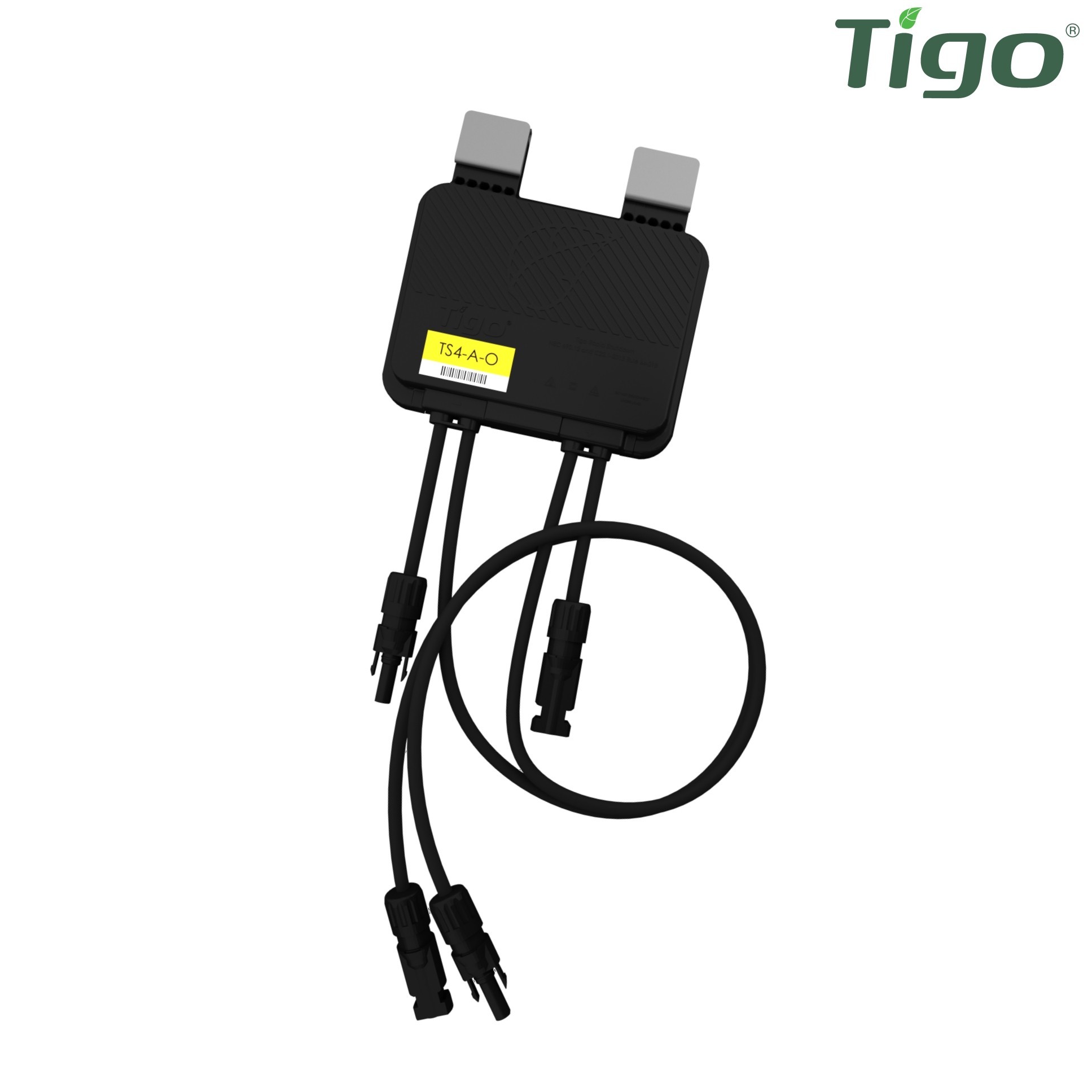

Power optimiser TS4-A-O 700 W Tigo

Product number: 461-00252-32
Product information "Power optimiser TS4-A-O 700 W Tigo"

The Tigo TS4-A-O optimises each photovoltaic module to which it is connected, improving the PV string parameters in case of shading or module mismatch. Furthermore, it improves energy efficiency by upgrading poorly functioning photovoltaic systems or by adding smart features to new installations. TS4-A-O with UHD-Core technology and extended specifications supports photovoltaic modules up to 700 W.

The TS4-A-O uses a safety function that only works when the optimizer is connected to Cloud Connect or Cloud Connect Advanced. This function is activated automatically or manually. When activated, the voltage and current of each module decreases to 0.

Manual control of the safety function can be performed by connecting a fire switch to Cloud Connect or Cloud Connect Advanced.

Distinguishing features of the product:

  Optimization for greater energy efficiency and design flexibility

  Manual or automatic shutdown option (high voltage disconnection)

  Monitoring of energy production and system management

Power [W]: 700
Type: Optimisation
Max. voltage [V]: 80
Min. MPPT voltage [V]: 16
Max. MPPT voltage [V]: 80
Max. current [A]: 15
Supported number of PV modules: 1
Dimensions [mm]: 38.4 x 139.7 x 22.9
Communication type: WiFi
Product Warranty: 25 years
