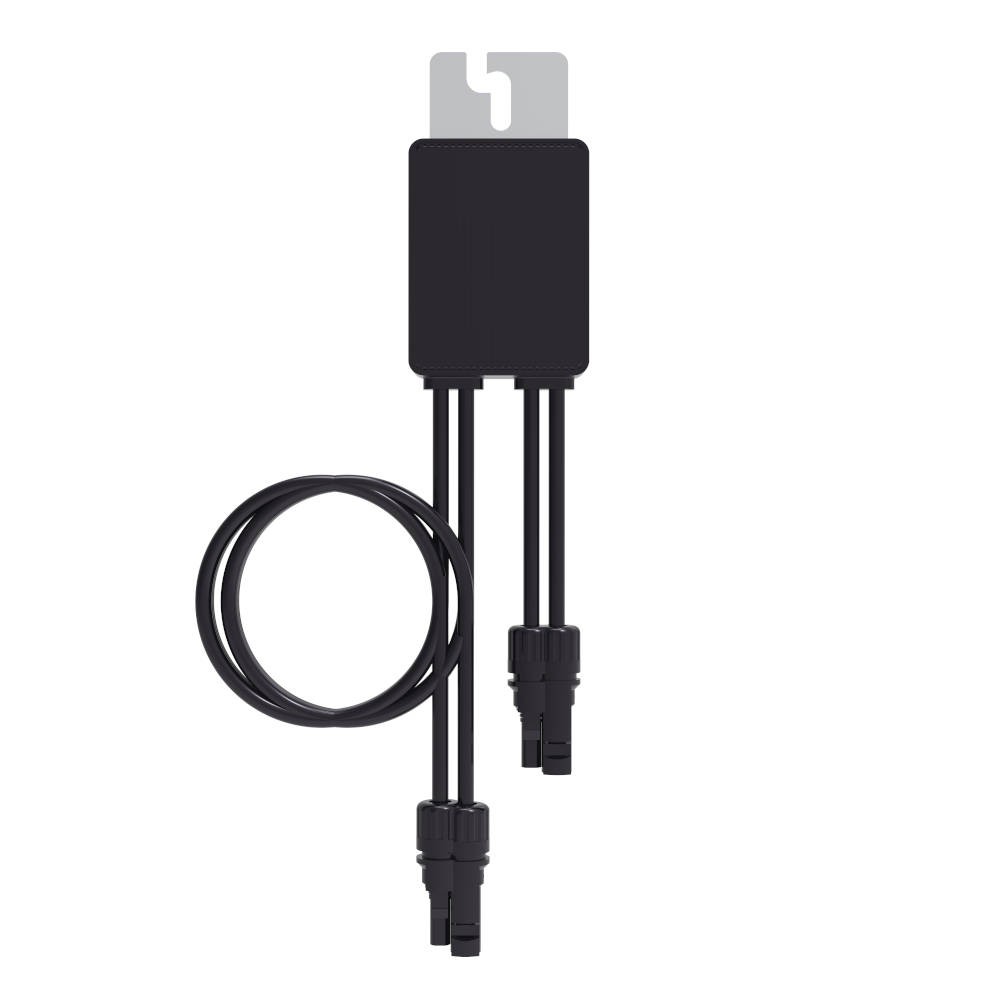

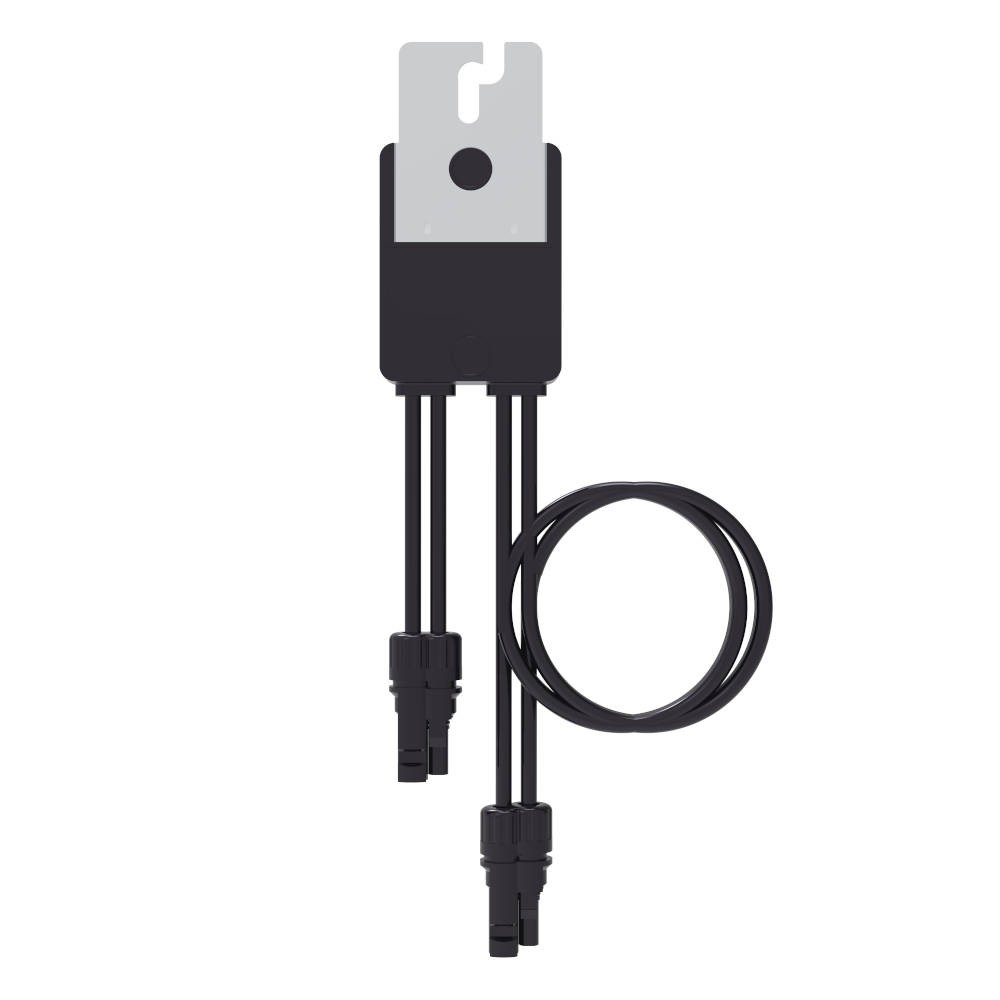

Power optimiser Sun-2000-450W-P2 Huawei
Your photovoltaic installation is not fully sunlit, or one of the panels is partially obscured? The solution will be to use the Huawei Sun2000-450W-P2 optimizer.
The product is distinguished by its versatility, which significantly facilitates the selection of installation elements. Optimizer quickly pairs with the inverter (less than 1.5 min.) and automatically maps the modules, so that you know the operating parameters of each of the modules that are equipped with the optimizer. Using an optimizer allows for quick diagnostics and trouble-free and safe installation service.
The installation of the optimizer will provide greater efficiency, active protection and higher comfort of PV installation operation.
Using full optimization:
- Optimizers reduce the impact of mismatches and bypass the module in the event of a failure
- You have access to module-level installation monitoring
- You can design longer PV chains
- If the inverter fails or is switched off, the voltage on the optimizers will drop to 0 V
The Huawei Sun2000-450W-P2 optimizer is compatible with the Sun2000 inverters of the L1, M1, M2 and M3 series.
| Maximum number of optimisers per chain: | 35 |
|---|---|
| Minimum number of optimisers per chain: | 4 |
| Power [W]: | 450 |
| Type: | Optimisation |
| Max. voltage [V]: | 80 |
| Min. MPPT voltage [V]: | 10 |
| Max. MPPT voltage [V]: | 80 |
| Max. short-circuit current per MPPT [A]: | 14.5 |
| Max. output current [A]: | 15 |
| Euro efficiency [%]: | 99 |
| Max. efficiency [%]: | 99.5 |
| Dimensions [mm]: | 75 x 140 x 28 |
| Weight [kg]: | 0.6 |
| Product Warranty: | 25 years |
