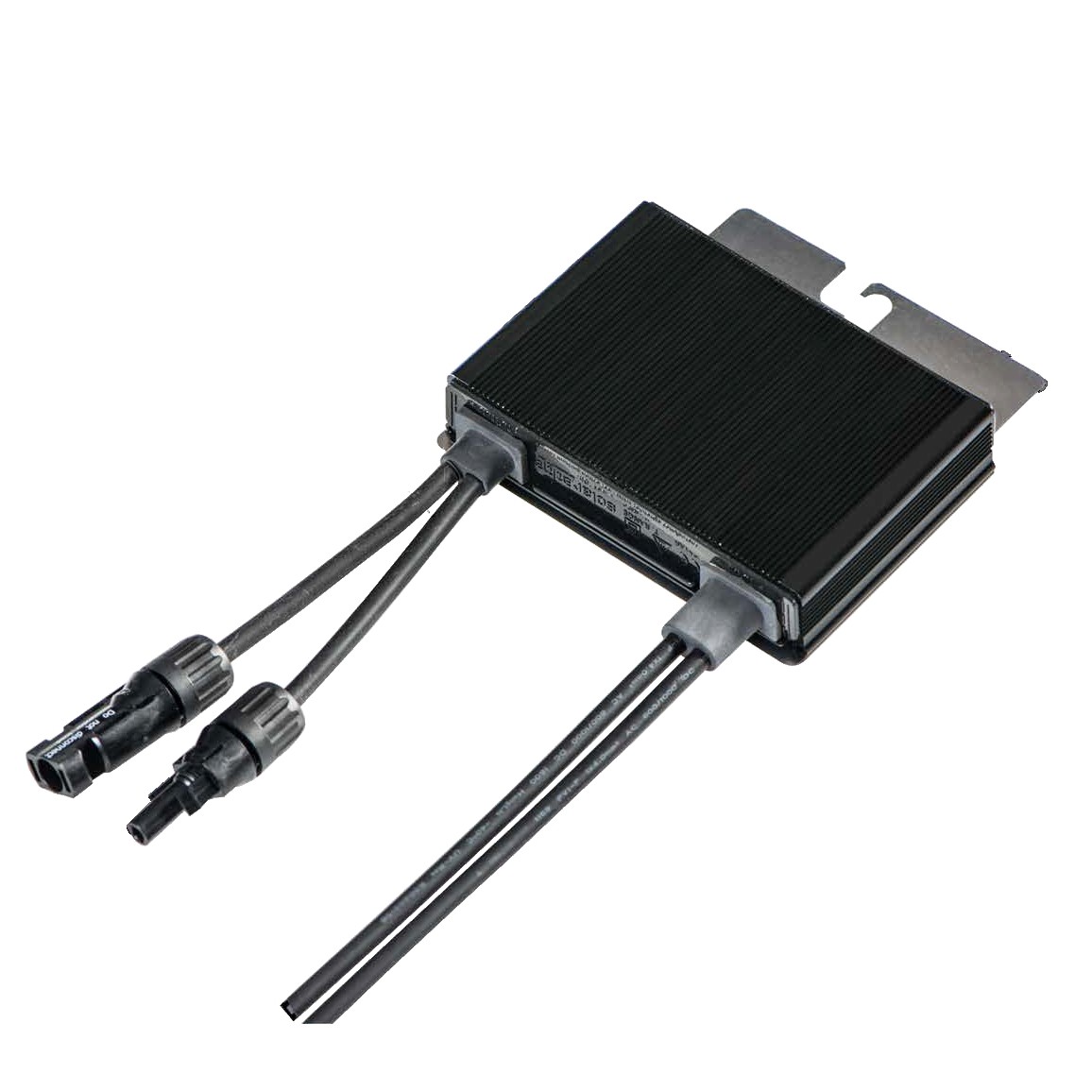

Power optimiser P404-4RM4MRM SolarEdge
The SolarEdge P404 power optimiser has an excellent efficiency of 99.5% and has been specially designed for use with SolarEdge inverters. This product has a unique solution that prevents the problem of module mismatch or partial shading.
Separate monitoring for each module greatly facilitates system management. The SolarEdge P404 has a function to reduce the voltage of each module—during installation or in case of fire.
Distinguishing features of the product:
Up to 25% more energy
Excellent efficiency (99.5%)
A unique solution that prevents the problem of module mismatch or partial shading
Maximum use of space thanks to a flexible system design
Quick mounting with one screw
Separate monitoring for each module greatly facilitates system management
Voltage reduction of each module—during installation or in case of fire
Cable length:
- input cables 0.16 m
- output cables 1.2 m
| Maximum power per string - inverter HD-wave [W]: | 5700 |
|---|---|
| Maximum power per string - inverter single phase [W]: | 5250 |
| Maximum power per string - inverter three phase [W]: | 11250 |
| Number of batteries included: | 1 |
| Power [W]: | 405 |
| Type: | Optimisation |
| Max. voltage [V]: | 80 |
| Min. MPPT voltage [V]: | 12.5 |
| Max. MPPT voltage [V]: | 80 |
| Max. current [A]: | 25 |
| Number of MPPT inputs: | 6 |
| Max. short-circuit current per MPPT [A]: | 11 |
| Euro efficiency [%]: | 98.8 |
| Max. efficiency [%]: | 99.5 |
| Dimensions [mm]: | 129 x 89 x 42.5 |
| Weight [kg]: | 0.775, 13, 50 |
| Power Warranty: | 25 years |
