TW Solar is committed to research and development of solar energy solutions, a modern company with many years of experience and advanced technology in silicon cell production, with monitored quality used for manufacturing photovoltaic panels sold worldwide.

TW Solar 460 W N-type module was designed with Multi-busbar technology, which provides over 5 W higher output power, and Half-cut technology, which reduces power losses and adds 5–10 W more. Additionally, High-Density Encapsulation improves module efficiency by 0.15%. Compared to standard PV modules, TW Solar stands out.

N-type cells enriched with phosphorus ensure lower light-induced degradation (LID), higher efficiency over the years and reduced operating temperature on sunny days. Thanks to this technology, the manufacturer offers a 30-year performance warranty.

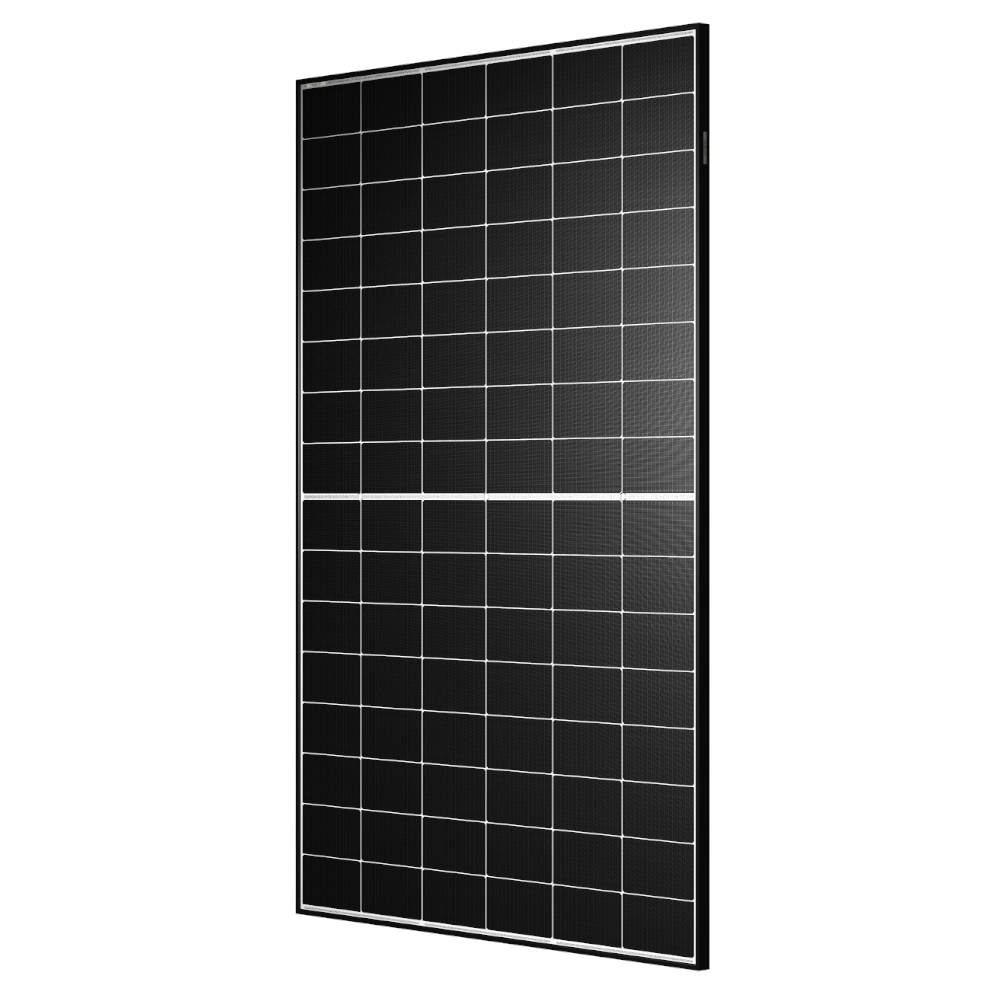

TW Solar 460 W is built from 96 N-type monocrystalline photovoltaic cells in a corrosion-resistant anodized aluminum alloy frame, covered on both sides with 2 mm high-transmission glass. The front glass has an anti-reflective coating (AR) and is thermally strengthened. This provides a 25-year product warranty and a 30-year performance warranty.

Cables of 1200 mm (+) and (–) from an IP68 junction box with MC4 connectors. The module has certificates: IEC61215/61730, IEC62804 (PID), IEC61701 (Salt), IEC62716 (Ammonia), IEC60068-2-68 (Sand), ISO 9001, ISO 14001, ISO 45001, ISO 50001, fully compliant with IEC 62941 quality system.

Product features:

• N-type cell technology
• Multi-busbar design
• High, stable efficiency up to 23%
• Positive power tolerance up to +5 W
• Excellent performance under low irradiation
• Half-cut technology for higher output
• Low PID sensitivity
• Lower module temperature, higher efficiency
• Snow load up to 5400 Pa, wind up to 2400 Pa
• No microcracks – laser cutting
• 25-year product warranty
• 30-year performance warranty

TW Solar 460 W N-type is perfect for customers looking for high quality and efficiency at an affordable price, for both on-grid and off-grid systems.

 WARNING! WARRANTY LOSS RISK

If installation does not follow manufacturer’s instructions, the warranty will be void.

Solfinity is not responsible for improper installation of PV modules. See installation instructions in the Attachments tab.
