Accessories for battery storage

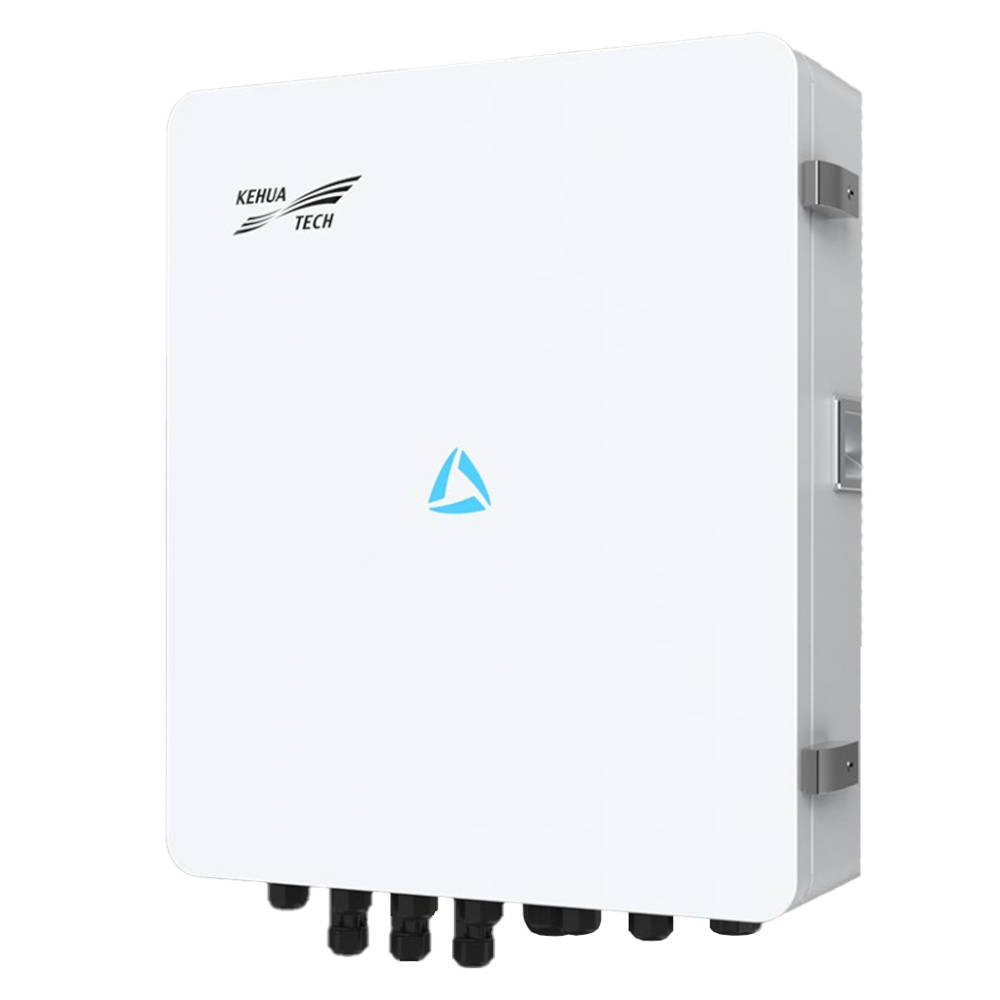

Parallel box PBOX50-3P Kehua
Manufacturer: Kehua
INDEX: PBOX50-3P
Parallel box is a device that integrates Kehua iStoragE3 series energy storage units, combining them into a single, secure, and easily managed network. The PBOX50-3P allows connection of two complete iStoragE3 towers with a total capacity of 80 kWh (2 x 40 kWh).
Key product features:
- Designed for use with iStoragE3 series energy storage units, convenient for system expansion
- Unified system monitoring and management
- Quick one-touch shutdown for system protection
- Supports 100% unbalanced loads
iStoragE3 is a highly efficient energy storage system with its own three-phase hybrid inverter. It works with dedicated battery modules built using LFP technology. A single system can connect from 1 to 8 battery modules. Two systems of equal capacity can be connected in parallel. iStoragE3 can operate on-grid with the public network or off-grid with a power generator.
| Application: | Energy storage systems |
|---|---|
| Communication type: | RS485, WiFi |
| Weight [kg]: | 30 |
| Dimensions [mm]: | 640 x 235 x 540 |
| Max. voltage [V]: | 24000 |
|---|---|
| Max. current [A]: | 34.7 |
