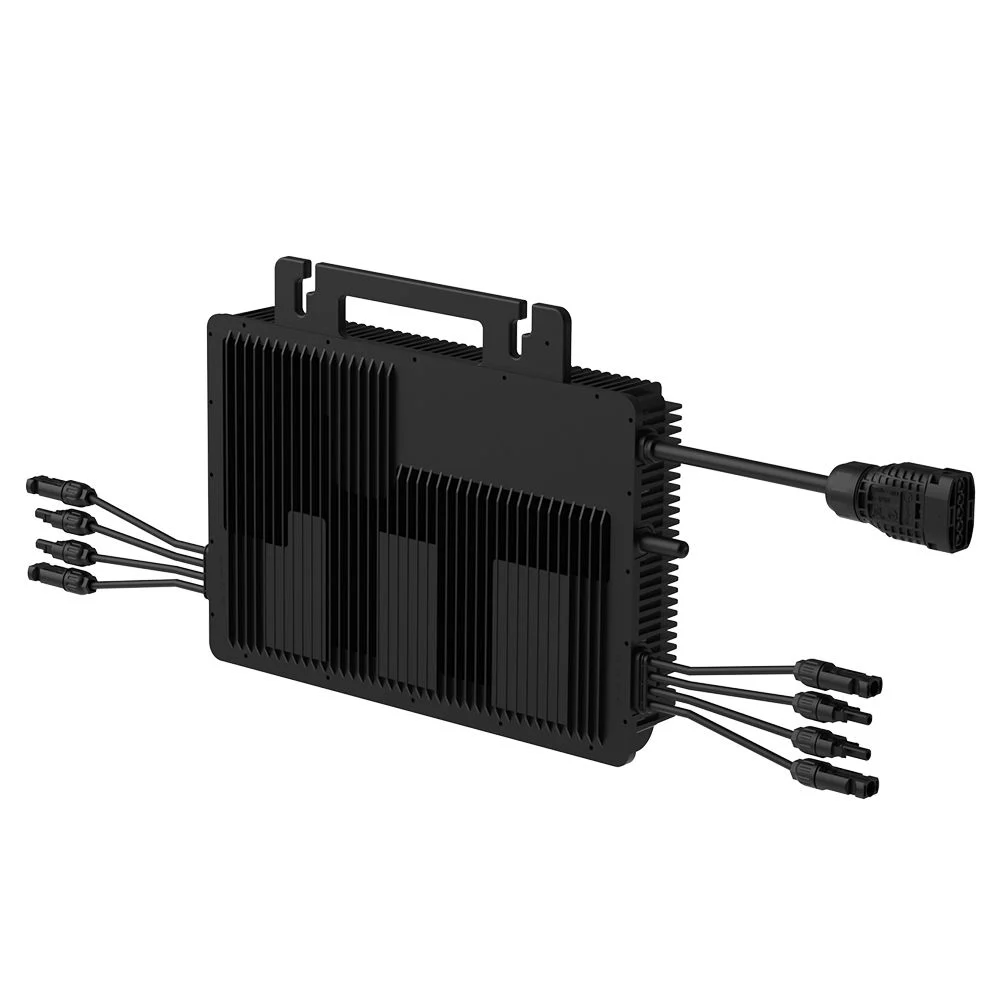

Microinverter MIT‑5000‑8T 4 MPPT 3F Hoymiles
Manufacturer: Hoymiles
INDEX: HOY MIT-5000-8T
Hoymiles MIT 8T microinverter series is a new generation of three-phase devices designed to handle up to eight high-performance photovoltaic modules. The MIT-5000-8T model, with its four independent MPPT inputs, ensures each module operates in optimal conditions, resulting in maximum energy yield. The innovative 8-in-1 design shortens installation time and reduces overall system costs. The device uses Sub-1G communication, providing a stable connection with the Hoymiles DTU gateway and access to module-level monitoring via the S-Miles Cloud platform.
A PV installation using MIT microinverters is an ideal solution for commercial and industrial applications, combining high power, installation safety, convenient servicing, and lower system cost.
Product features:
- Supports up to eight PV modules in one device
- 4 independent MPPTs for maximum energy harvest
- Three-phase output – optimal for industrial and commercial installations
- Low input voltage for enhanced installation and operational safety
- Compatible with the latest PV modules (182 mm / 210 mm)
- 8-in-1 design with Flex-T5 system – quick installation and cost reduction
- Sub-1G communication – stable connection and convenient remote management
- Weather-resistant (IP67) with passive cooling and no fans
| Type: | Microinwerter |
|---|---|
| Communication type: | Sub-1G |
| Weight [kg]: | 9 |
| Dimensions [mm]: | 395 x 60 x 308 |
| Maximum short-circuit current per MPPT [A]: | 25 |
|---|---|
| Maximum PV power [W]: | 750 |
| Max. voltage [V]: | 140 |
| Min. MPPT voltage [V]: | 12 |
| Max. MPPT voltage [V]: | 136 |
| Initial feed-in voltage [V]: | 32 |
| Number of MPPT inputs: | 4 |
| Maximum current per one MPPT [A]: | 20 |
| Supported number of PV modules: | 8 |
| Power [W]: | 5000 |
|---|---|
| Feed-in phases: | 3 |
| Max. output current [A]: | 7.25 |
| AC output voltage [V]: | 400 |
| Max. efficiency [%]: | 97.4 |
|---|
