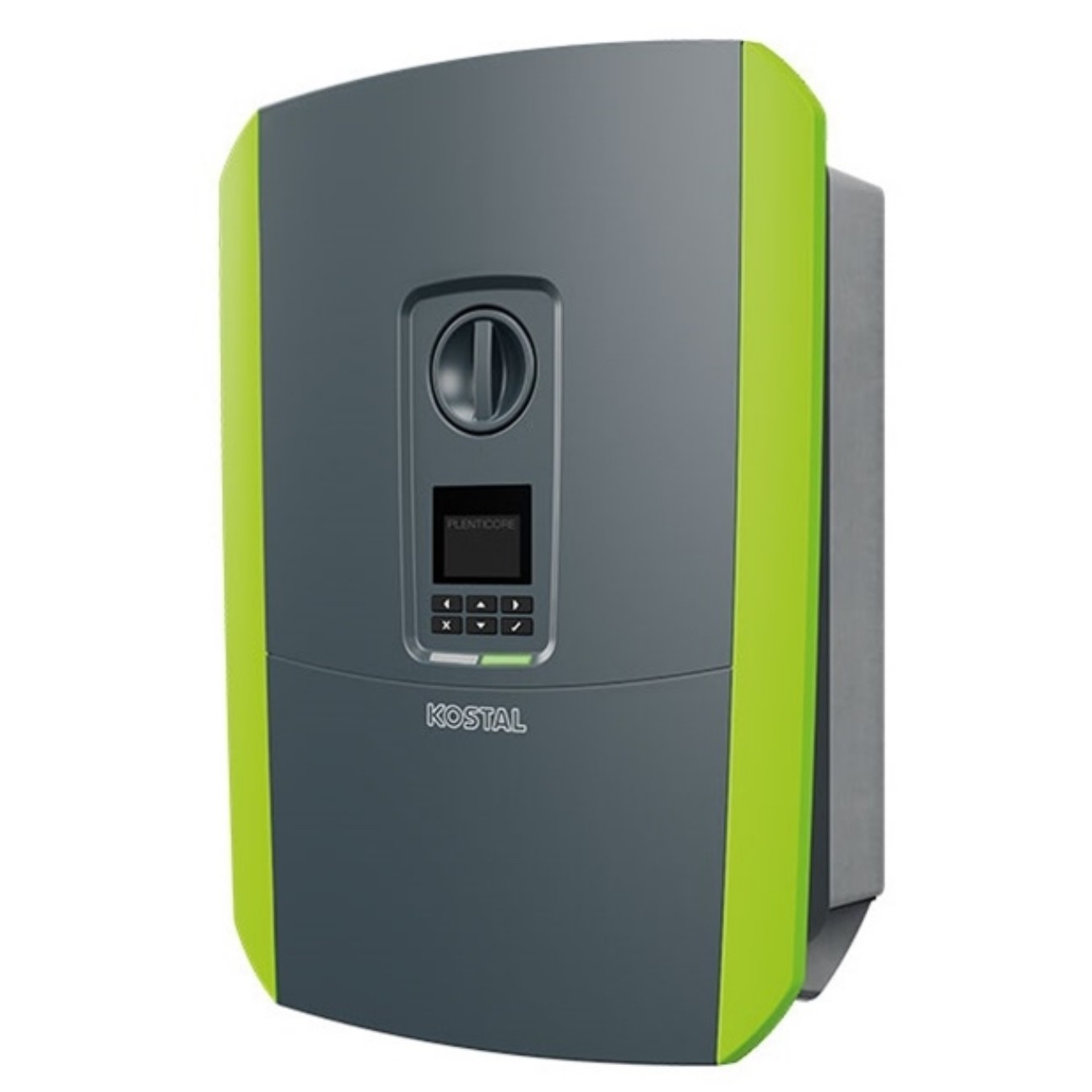

Hybrid solar inverter Plenticore plus 10 G2 Kostal

Plenticore plus G2 three-phase inverter with optionally activated battery input *. It’s compatible with various high-voltage batteries and features three MPPT trackers for almost all types of roofs.

The product is equipped with rapid self-learning shade management system that adapts individually to the installation spot. Furthermore, the device is simple to configure thanks to the launch wizard. The installation is safe thanks to a separate and clear junction area and protected power electronics.

Features:

• Maximum efficiency 97.2%
• Input voltage range 120 to 1000 V
• Three MPPT
• Intelligent shade management
• Own consumption control function
• Ambient temperature range: -20 to +60 degrees C
• Malfunctions indicated by lights on the control panel
• Intelligent active cooling
• Optional energy storage system connection
• Charging electric cars directly from the installation

Operation and installation:

• Easy assembly and disassembly

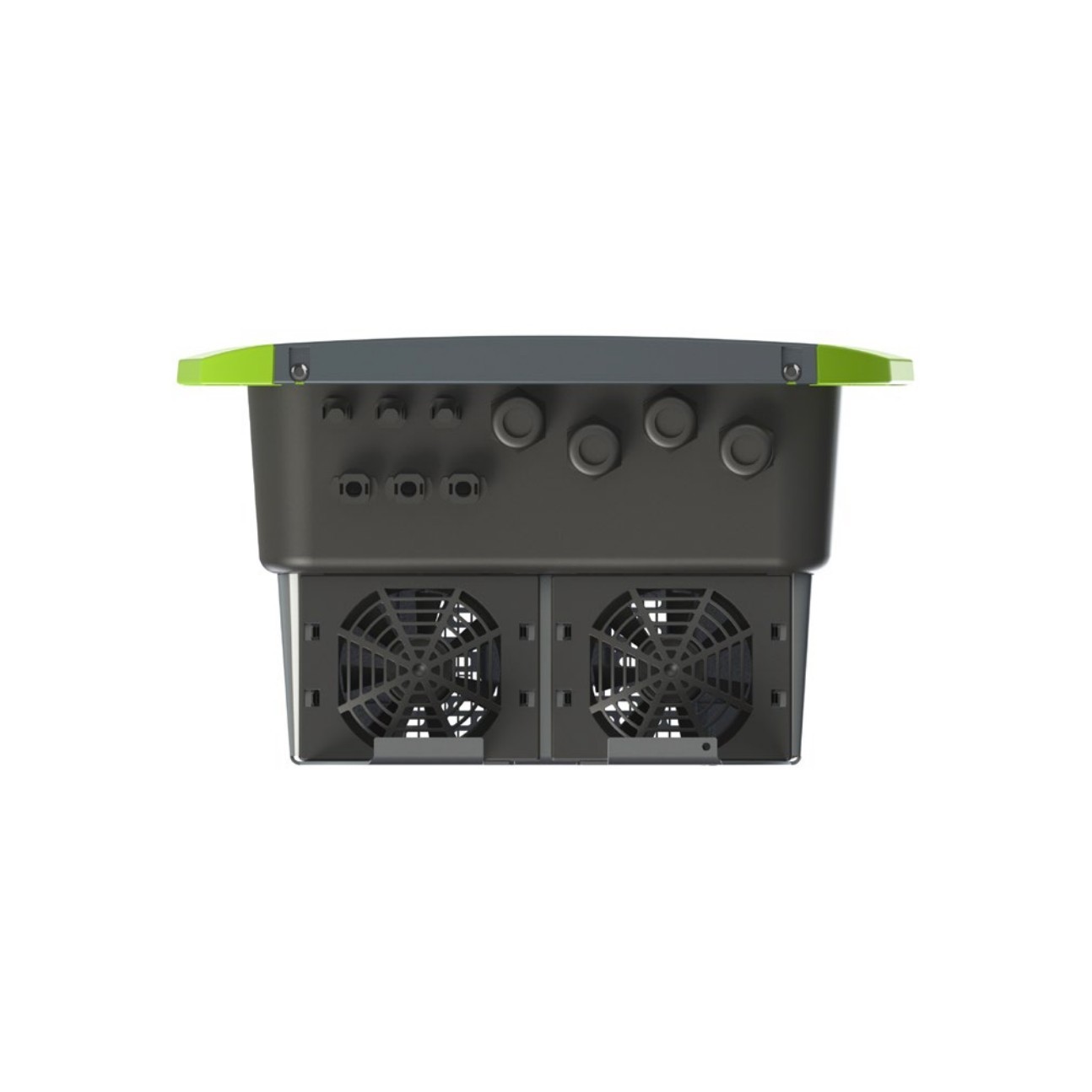

• Separate chamber with connections for better protection of the inverter’s electronics
• Easy-to-use DC breaker on the front part of the housing
• Dynamic active power control
• The inverter is equipped with Sunclix connectors
• Communication via LAN, WiFi and RS 485/Modbus as standard
• IP65 rating
• Dimensions 405 x 563 x 233 mm

Usage:

• System operation monitoring via local connection to the inverter or through the internet
• Monitoring the device’s operation using the display
• Legible graphical control panel
• Error codes displayed on the screen
• Internal memory data storage for up to 365 days
• Noise level 39 dBA
• Up to 5 years of warranty

* NOTE! Hybrid operation option is subject to a fee and is available directly at the manufacturer Kostal’s website after logging in --> Kostal Shop
