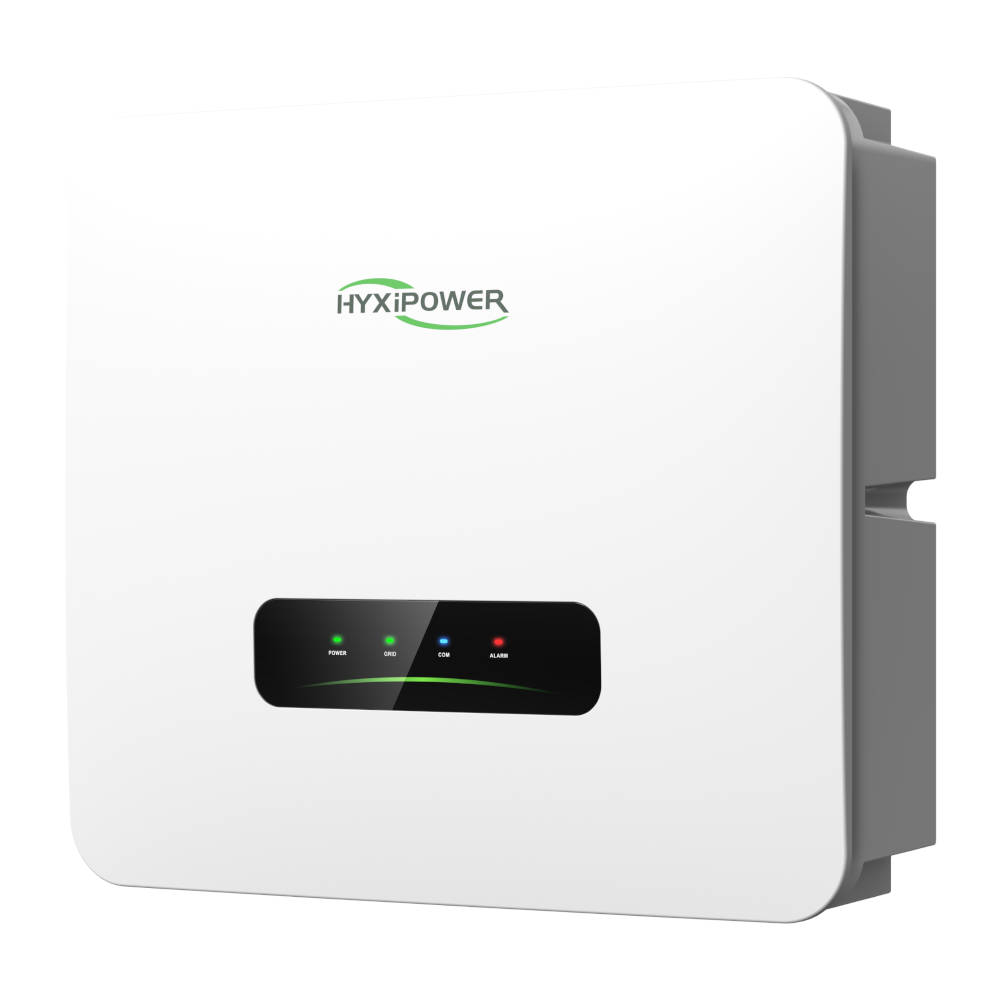

HYX-H10K-HT is a modern three-phase hybrid inverter with 10 kW power, designed for integration of photovoltaic systems with energy storage. The device combines the functions of a classic PV inverter with intelligent battery charging and discharging management, enabling maximum self-consumption, greater energy independence, and reduced electricity purchase costs.

The inverter belongs to the HT series by HYXi and is built for operation in PV + energy storage + grid support systems. It allows both grid-connected operation and backup mode, ensuring continuous power supply during grid outages. It supports the use of module optimizers, offers a wide MPPT range, high efficiency, and strong charging and discharging performance.

Thanks to its robust design with IP65 protection rating, resistance to salt mist (C4), and built-in protections – such as DC/AC type II surge protection and AFCI detection – the HYX-H10K-HT is suitable for demanding conditions, ensuring safe and reliable operation for years.

Key product features:

• 3 MPPT inputs
• Energy storage integration (150–600 V, up to 11 kW)
• UPS-grade backup mode
• High efficiency up to 98.6%
• Wide MPPT range (140–980 V)
• Switching time < 10ms
• DC oversizing up to 160%
• Advanced protections (AFCI, SPD Type II, IP65, C4)
• Monitoring and diagnostics via app

Other:

• Compact design, quick installation
• Communication: CAN/RS485/WiFi/4G/LAN
• IP65 protection rating
• Weight: 34 kg
• Dimensions: 542 x 478 x 186 mm
• 10-year warranty
