DTU-PRO-S 4G LTE Hoymiles communication module
Product number:
DTU-PRO-S 4G
Product information "DTU-PRO-S 4G LTE Hoymiles communication module"
The module is used for 4G LTE communication with Hoymiles microinverters HMS i HMT series (communication in sub 1GHz band) in order to monitor the system and the operation of photovoltaic panels.
Distinguishing features of the product:
- Module-level monitoring and data storage
- Built-in module for 4G LTE and older communications
- Stronger communication with microinverter and monitoring server
- More accurate PV generation and loads consumption monitoring
- Supports power export limiting and zero-export applications
- Applicable with Modbus RTU/TCP protocol, thus easy to see power and generation on your monitoring platform

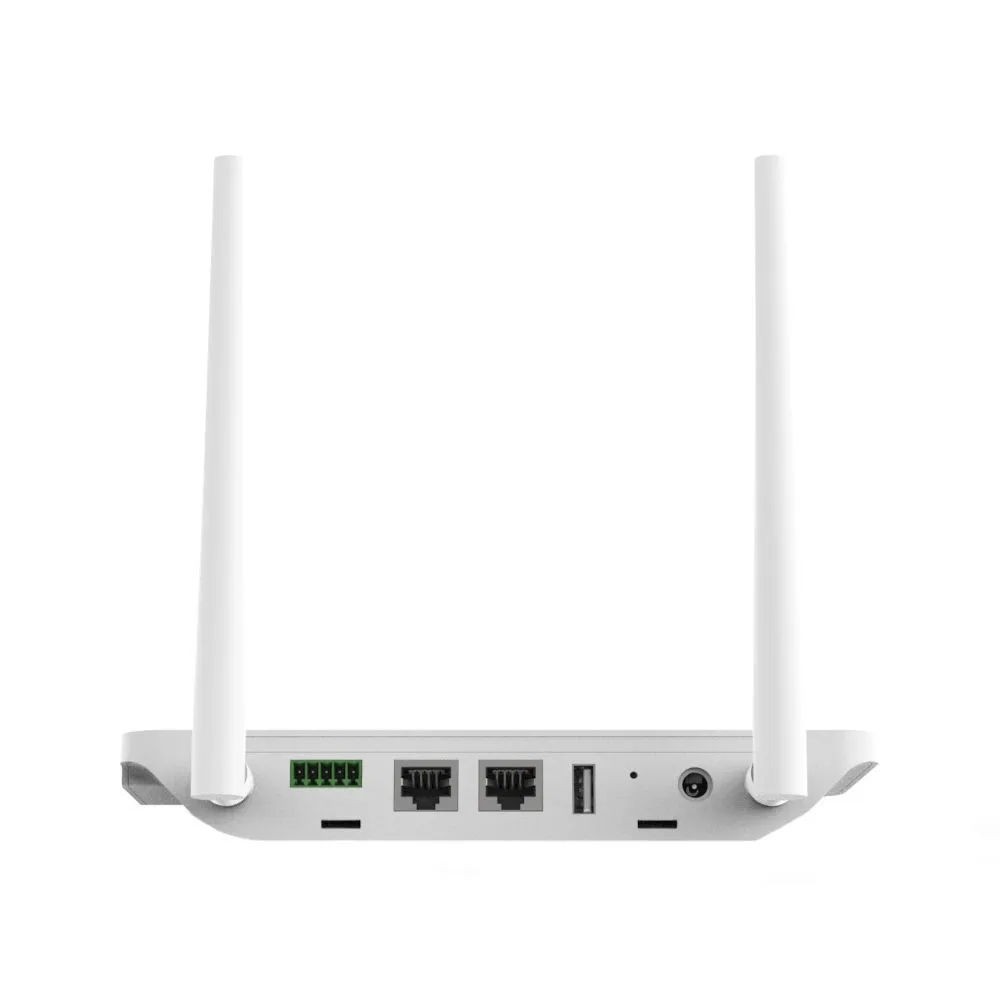

- Supports RS485, Ethernet for communication with peripherals
- Four LEDs, therefore easier to see the status of the microinverter system
| Category: | Monitoring / communication |
|---|---|
| Dimensions [mm]: | 200 x 101 x 29 |
| Weight [kg]: | 0.2 |
| Product Warranty: | 2 years |
