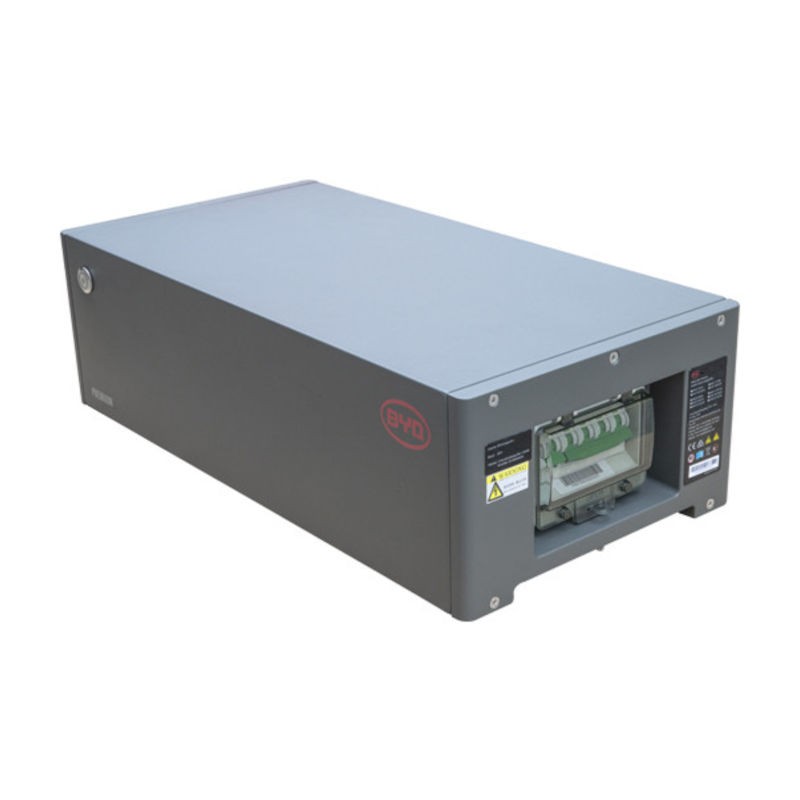

Control unit for BYD Battery-Box Premium models HVS and HVM
BATTERY-BOX PREMIUM HVS
One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh.
Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh.
Ability to scale by adding HVS modules or parallel HVS stacks later.
BATTERY-BOX PREMIUM HVM
One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh.
Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh.
Ability to scale by adding HVM modules or parallel HVM stacks later.
Features that distinguish the product:
- Capable of High-Powered Emergency-Backup and Off-Grid Functionality
- Highest Efficiency Thanks to a Real High-Voltage Series Connection
- The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
- Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
- Two Distinct Modules to Cover the Complete Range of System Sizes
- Highest Safety Standards like VDE 2510-50
| Nominal battery voltage [V]: | 51.2/102.4 |
|---|---|
| Battery technology: | Lithium Ion |
| Dimensions [mm]: | 58.5 x 29.8 x 24.6 |
| Weight [kg]: | 16.66 |
| Product Warranty: | 10 years |
