Click 2.1 Alumero adjustable middle buckle with pins
Product number:
802301C 30-45/23061
Product information "Click 2.1 Alumero adjustable middle buckle with pins"
The long click middle buckle Alumero is made of aluminium and is used to attach photovoltaic modules with 35, 40 and 45 mm thick frames to the mounting structure. The buckle allows the user to install anywhere without having to insert the nut from the beginning of the mounting profile.
The buckle is fixed between photovoltaic panels with a stainless-steel bolt and a square M8 nut.
NOTE: These clamps do not guarantee that the modules are correctly earthed. You must additionally ground each module using earthing cables.
| Buckle position: | Median |
|---|---|
| Compatible with Alumero bridge: | Yes |
| Elements: | Clamps |
| Colors: | Silver |

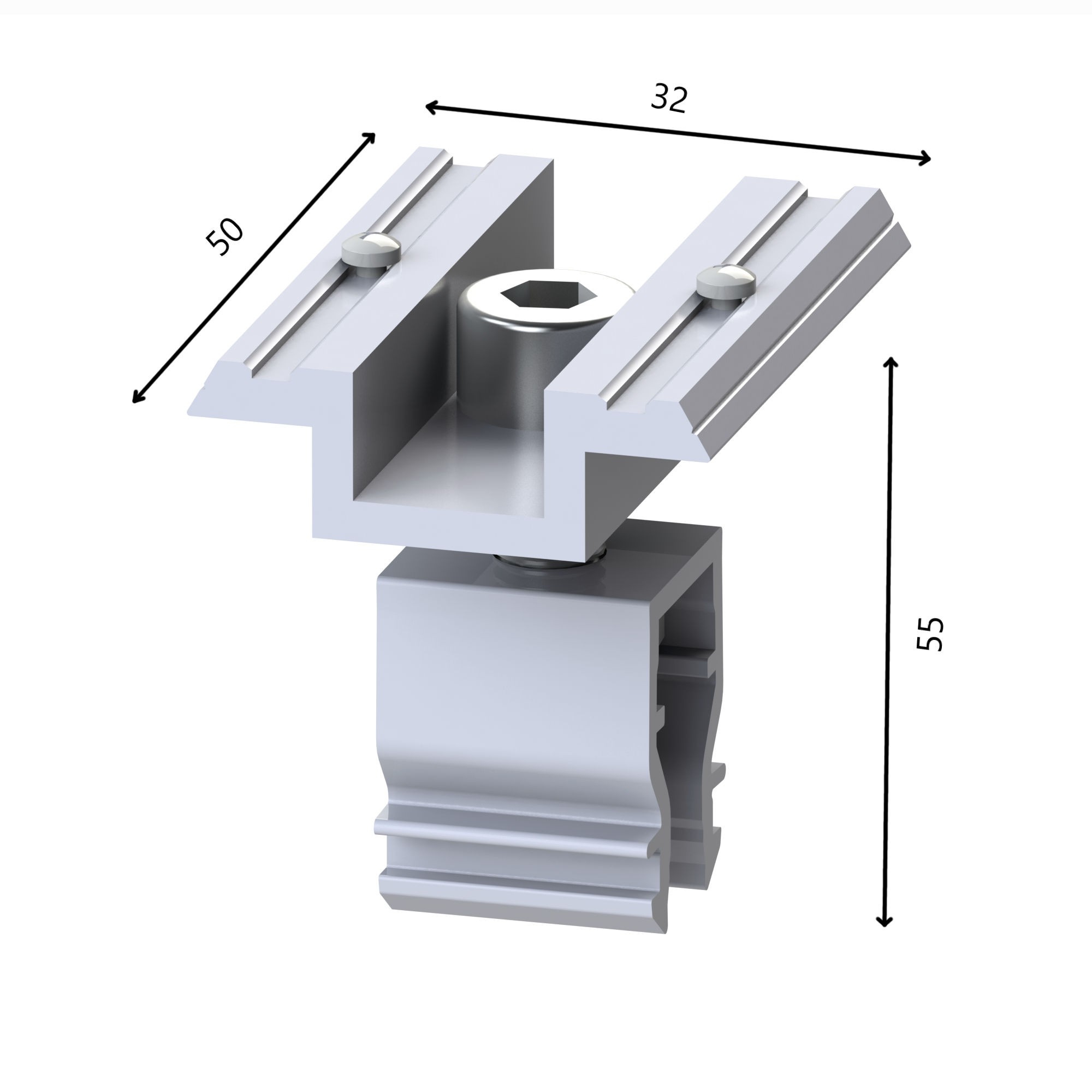

| Dimensions [mm]: | 50 x 55 x 32 |
