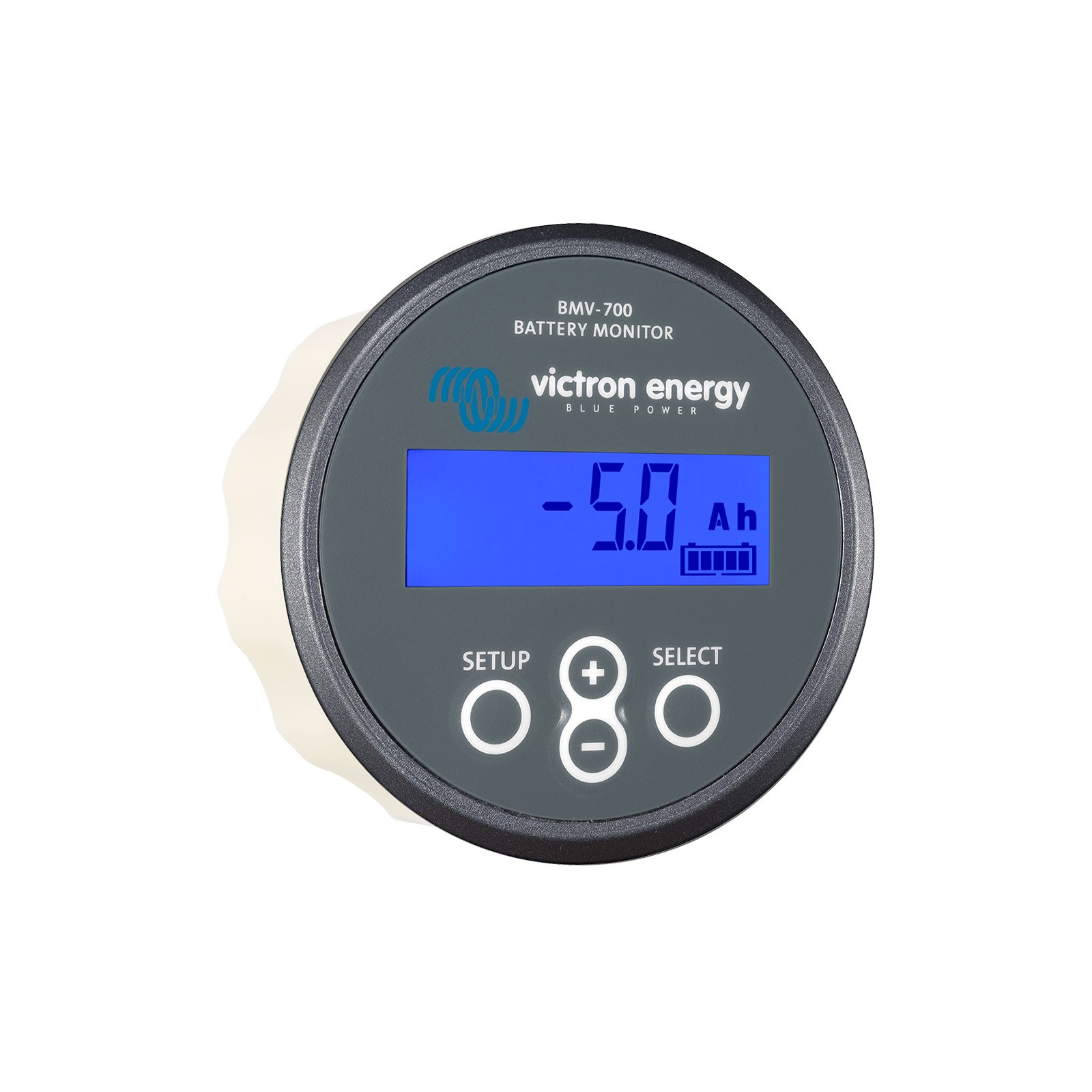

BMV-700 Retail Victron Energy battery monitoring module
The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Easy to install

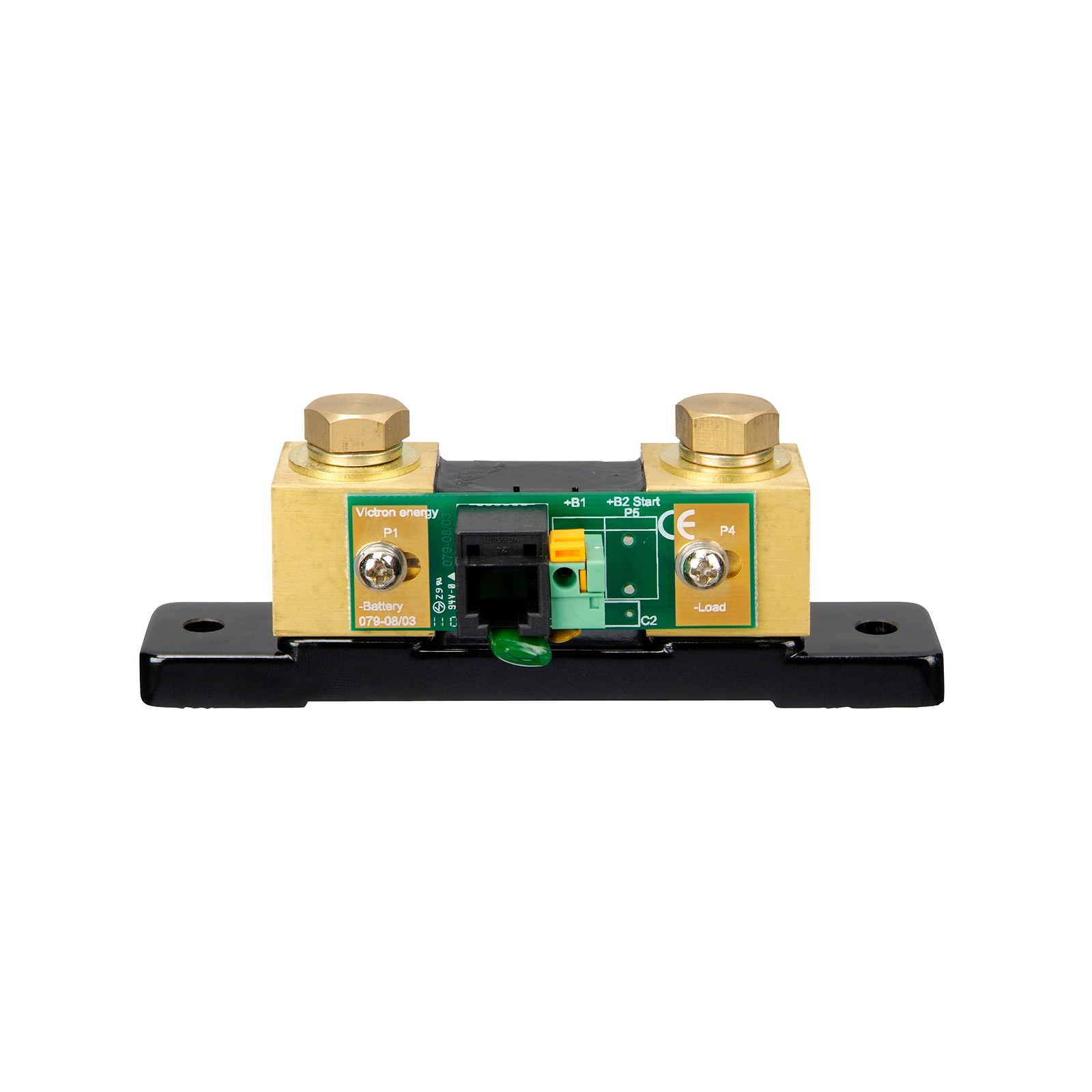

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

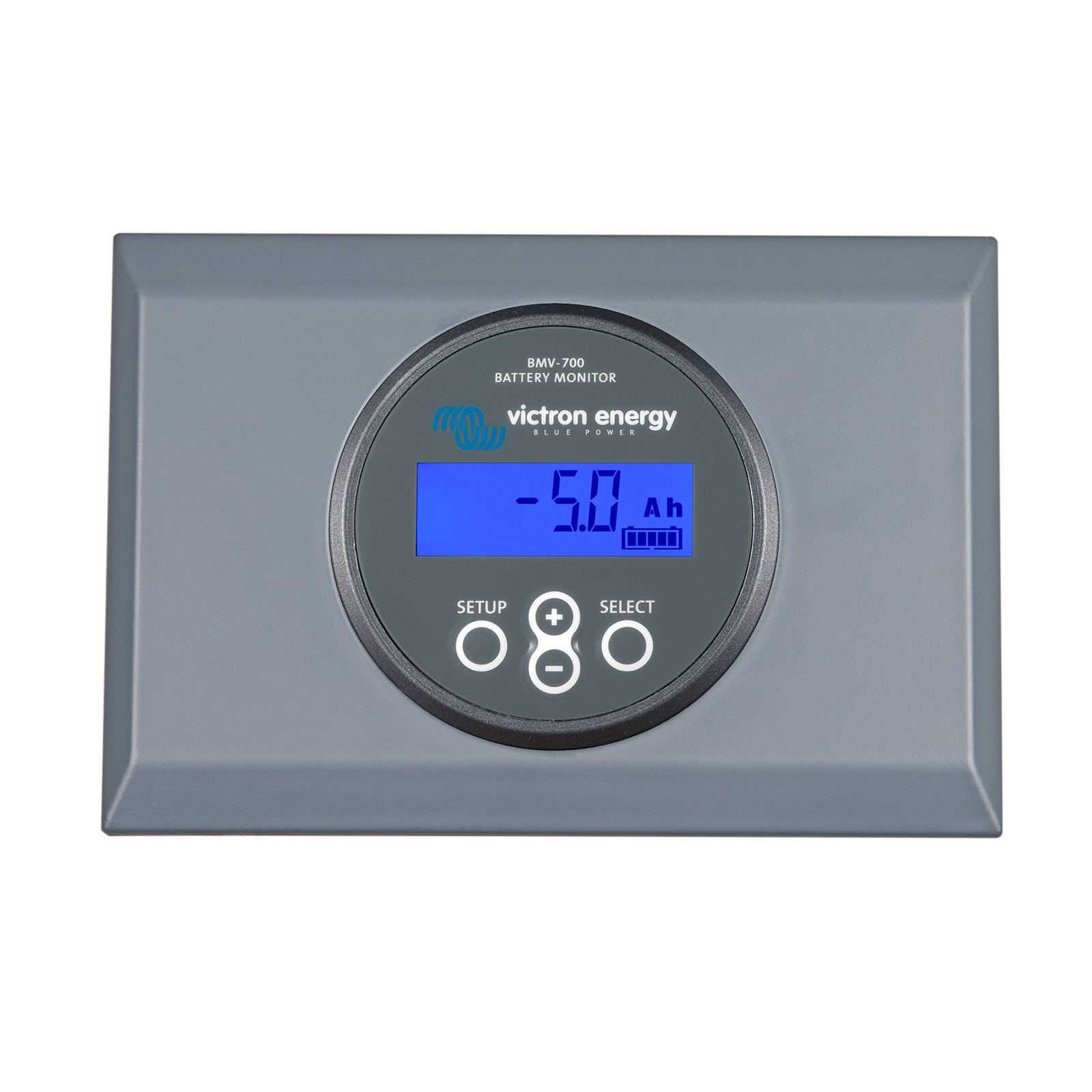

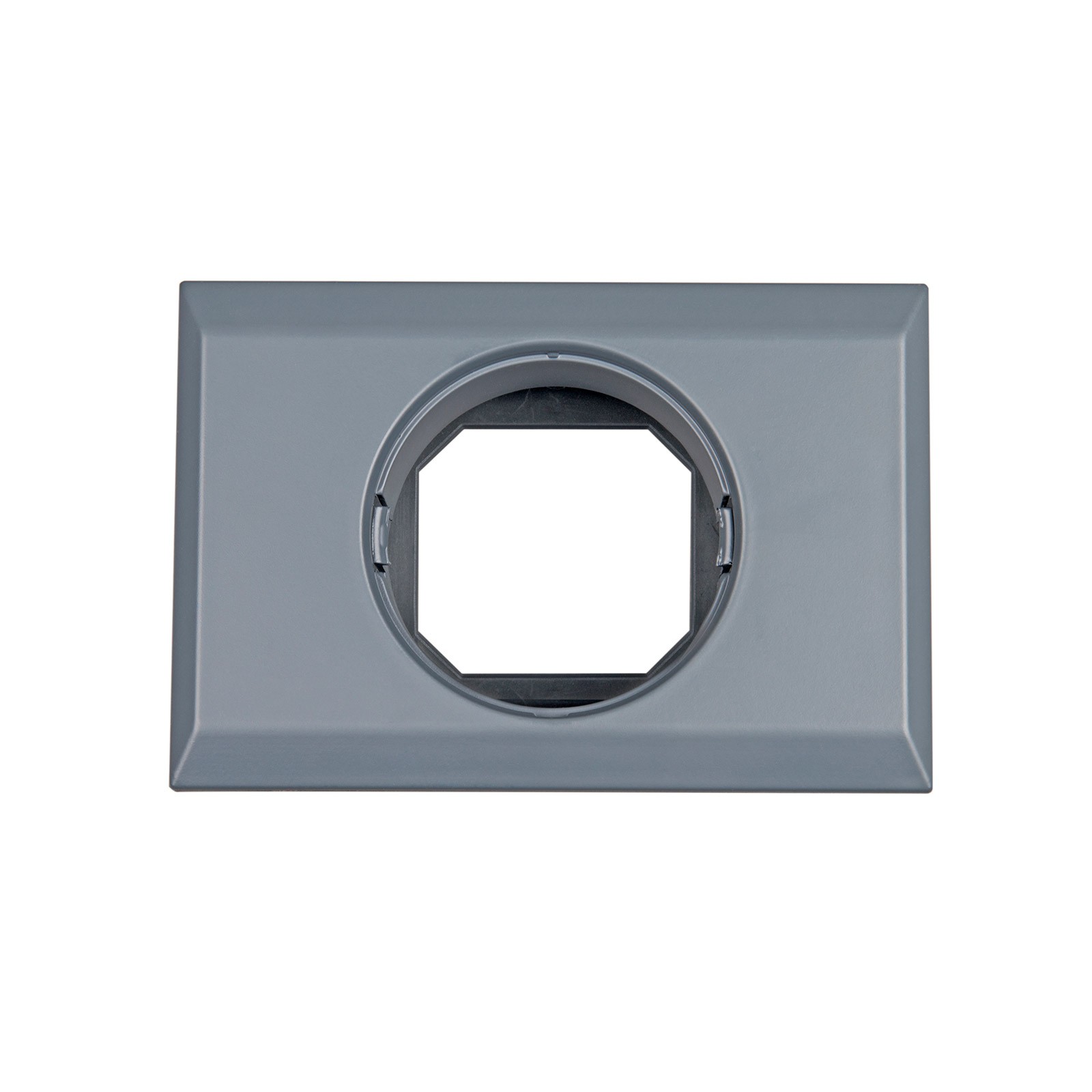

Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
Standard features:
Battery voltage, current, power, ampere-hours consumed and state of charge
Remaining time at the current rate of discharge
Programmable visual and audible alarm

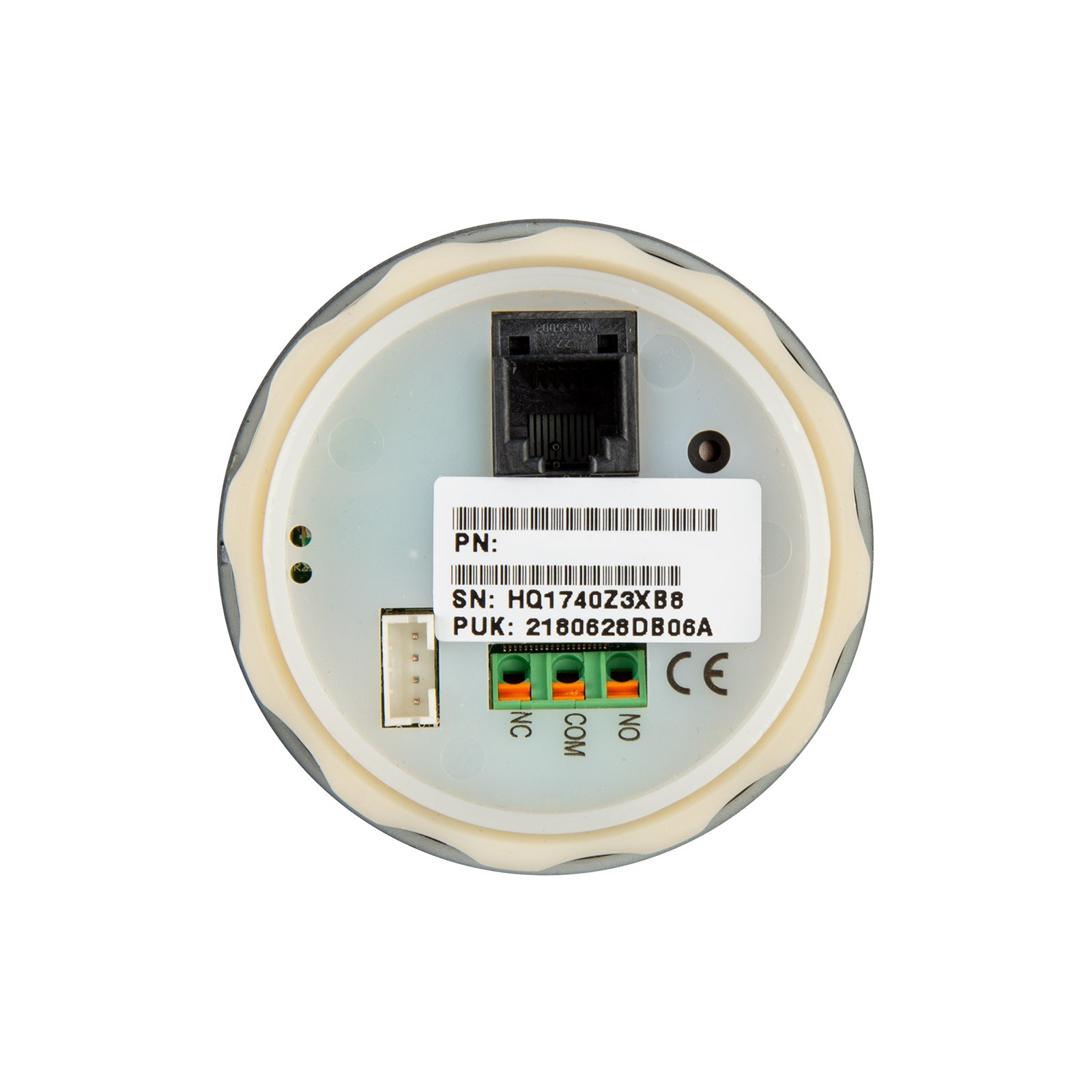

Programmable relay, to turn off non critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 6,5 – 95 V
High current measurement resolution: 10 mA (0,01 A)
Low current consumption: 2,9 Ah per month (4 mA) @12 V and 2,2 Ah per month (3 mA) @ 24 V
In the Support tab, there is an instructional video on how to install the BMV-700 series monitor and optimization of synchronization parameters.
| Category: | Monitoring / communication |
|---|---|
| Recommended battery capacity [Ah]: | 1 - 9999 |
| Input voltage range DC [V]: | 6.5 - 95 |
| Dimensions [mm]: | 69 x 69 |
| Weight [kg]: | 0.74 |
| Product Warranty: | 5 years |
