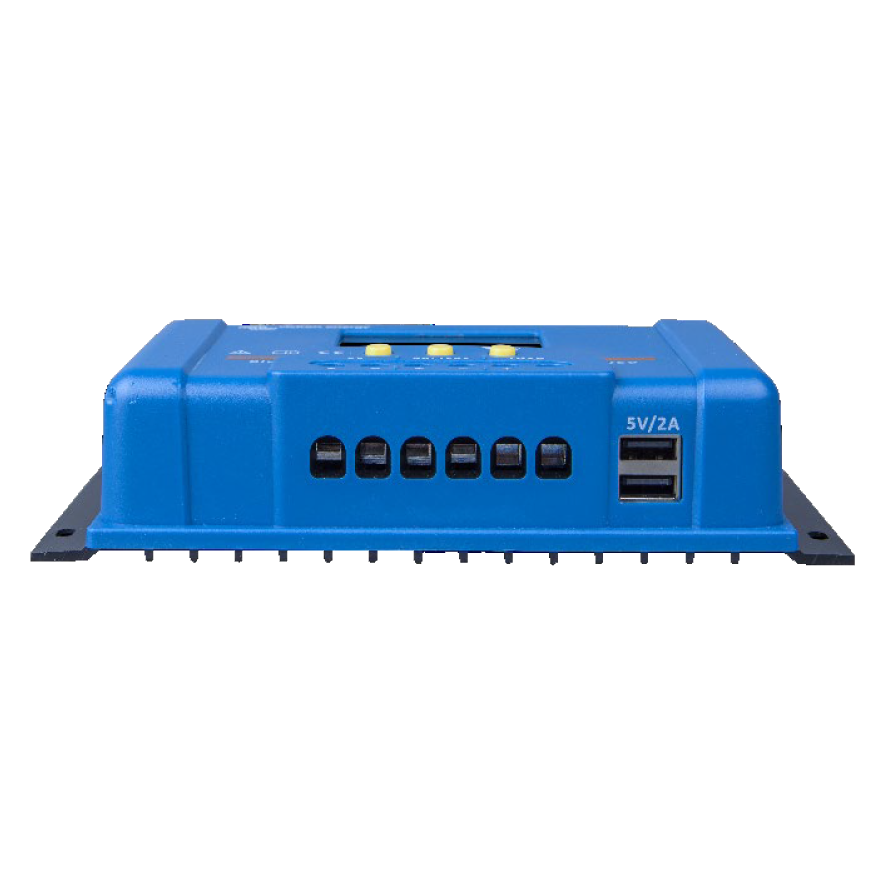

BlueSolar PWM-LCD&USB 48V-20A Victron Energy charge controller
Sold out
No longer available
Product number:
SCC040020050
Product information "BlueSolar PWM-LCD&USB 48V-20A Victron Energy charge controller"
BlueSolar PWM is a charging regulator for cooperation in PV systems and is used in systems with energy banks. After connecting to the system, it is immediately ready to work in the default settings.
Distinguishing features of the product:
Lighting control function, fully programmable
Three stage battery charging (bulk, absorption, float), fully programmable
Load output with low voltage and manual disconnect (programmable)
Load output protected against over load and short circuit
Protected against reverse polarity connection of the solar panels and/or battery
Two 5 Volt USB outputs
Liquid Crystal Display
| Charge voltage, absorption [V]: | 57.6 |
|---|---|
| Charge voltage, float [V]: | 54.8 |
| Low voltage load disconnect [V]: | 44.8 |
| Low voltage load reconnect [V]: | 50.4 |
| Maximum PV open circuit voltage [V]: | 100 |
| Nominal battery voltage [V]: | 48 |
| Rated charge current [A]: | 20 |
| Self-consumption [mA]: | 10 |
| Battery technology: | AGM/Gel/Classic/Lithium Ion |
| Dimensions [mm]: | 184 x 101 x 47 |
| Weight [kg]: | 0.3 |
| Product Warranty: | 5 years |
