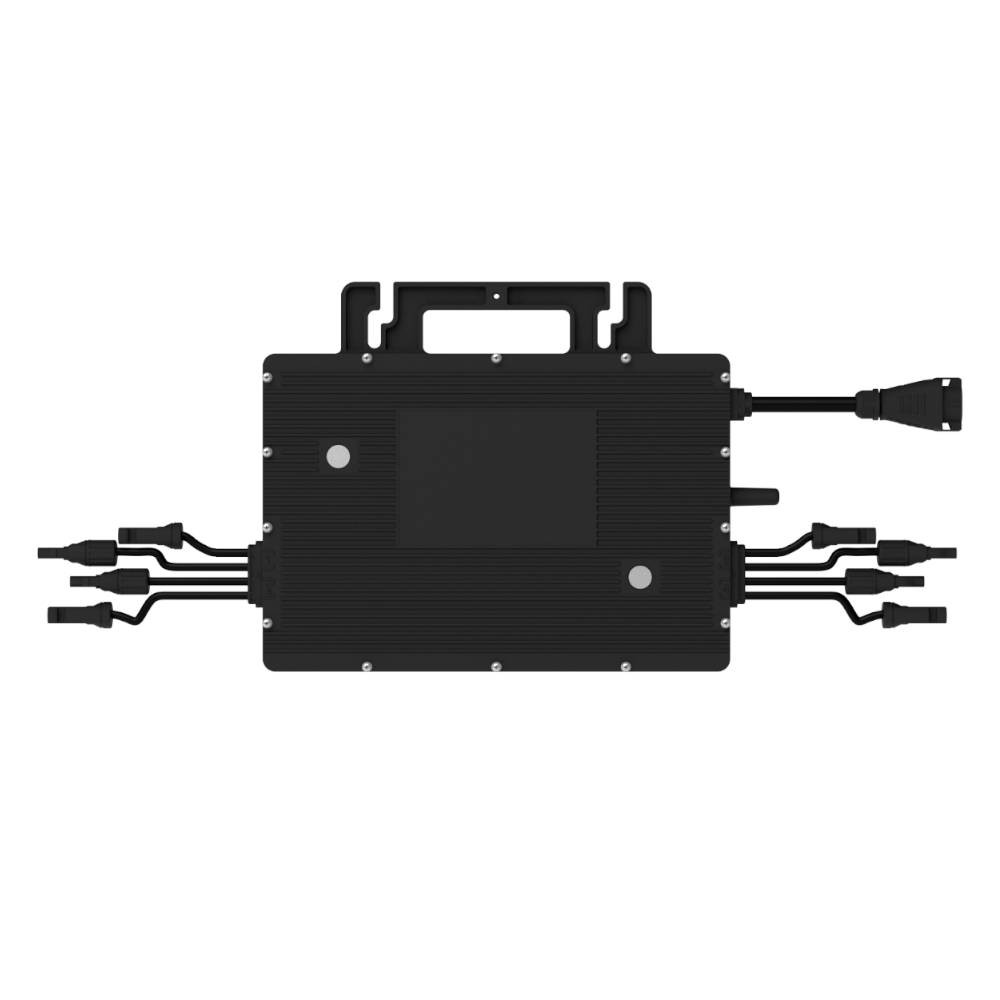

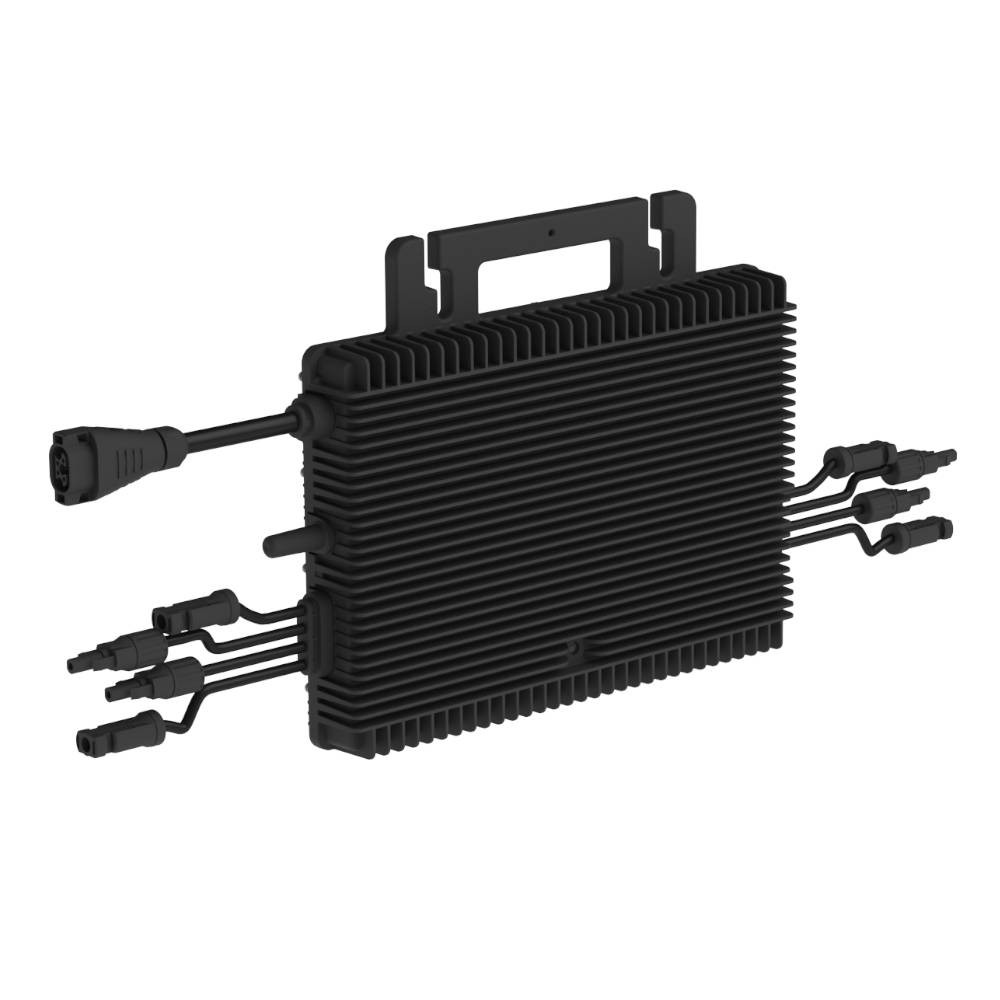

Photovoltaic microinverter HMT-1600-4T 3F Hoymiles

Manufacturer: Hoymiles

INDEX: HOY HMT-1600-4T

Product number: HOY HMT-1600-4T
Product information "Photovoltaic microinverter HMT-1600-4T 3F Hoymiles"

Hoymiles new generation microinverter HMT-1600 series is designed to accommodate the high-powered PV modules, with maximum output power up to 1600 VA and maximum DC input current up to 14 A.

The innovative 4-input design enables faster installation and lower cost, and makes HMT-1600 series a very cost-effective choice.

The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU. Smart platform S-Miles Cloud makes it possible to module-level monitoring and remote O&M.

Features:

  • Three-phase output, more suitable for commercial and industrial applications
  • With output power up to 1600 VA, compatible with 182 mm/210 mm PV module
  • Grid protection relay integrated
  • 4-in-1 design enables faster installation and comes with a lower cost
  • Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
  • Sub-1G wireless solution allows stable communication in commercial and industrial settings
DC parameters:
Max. voltage [V]: 65
Min. MPPT voltage [V]: 16
Max. MPPT voltage [V]: 60
Initial feed-in voltage [V]: 22
Number of MPPT inputs: 2
Maximum short-circuit current per MPPT [A]: 25
Maximum PV power [W]: 540
Supported number of PV modules: 4
AC parameters:
Power [W]: 1600
Max. output current [A]: 2.32
Feed-in phases: 3
Efficeincy:
Max. efficiency [%]: 96.5
General features:
Type: Microinwerter
Communication type: Sub-1G
Dimensions WxHxD [mm]: 326 × 222 × 40.6
